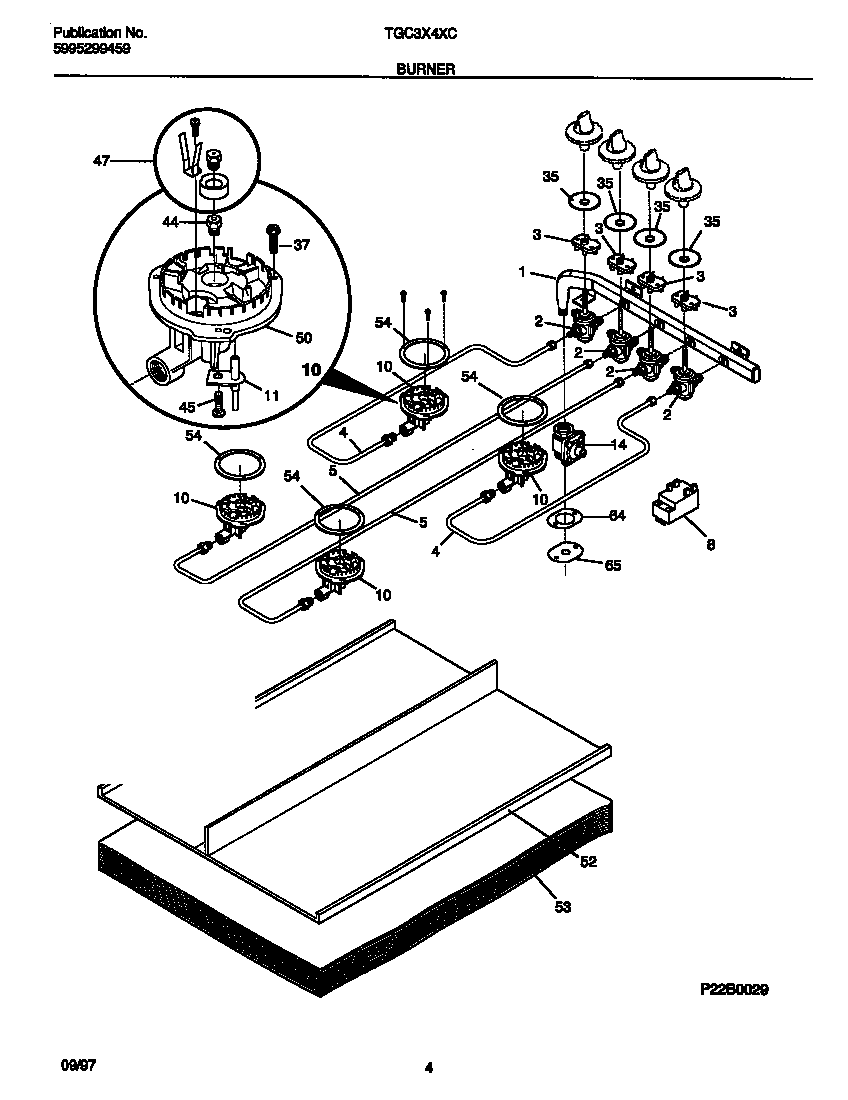

TGC3X4XCC2 03 – BURNER

TGC3X4XCC2 03 – BURNER

Written by

in

TGC3X4XCC2 03 – BURNER

Products

PositionProduct
1AWCI 318077700
1B5303311174 Frigidaire Oven Screw
2B316048200 Frigidaire Oven Screw
2AWCI 5303935042
3SWITCH-IGNITOR
4TUBE-BURNER
5TUBE-BURNER
85304505695 Frigidaire Oven Module
10BURNER ASSY
11316011200 Frigidaire Oven Top Burner Igniter
145308007974 Frigidaire Pressure Regulator
35WCI 5303307978
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44ORIFICE-TOP BURNER
45WCI 316011100
47WCI 5303308575
50BURNER-TOP, SMALL, (4)
52WCI 5303209024
53WCI 5303209025
64Bracket,retainer
655304506478 Frigidaire Seal
