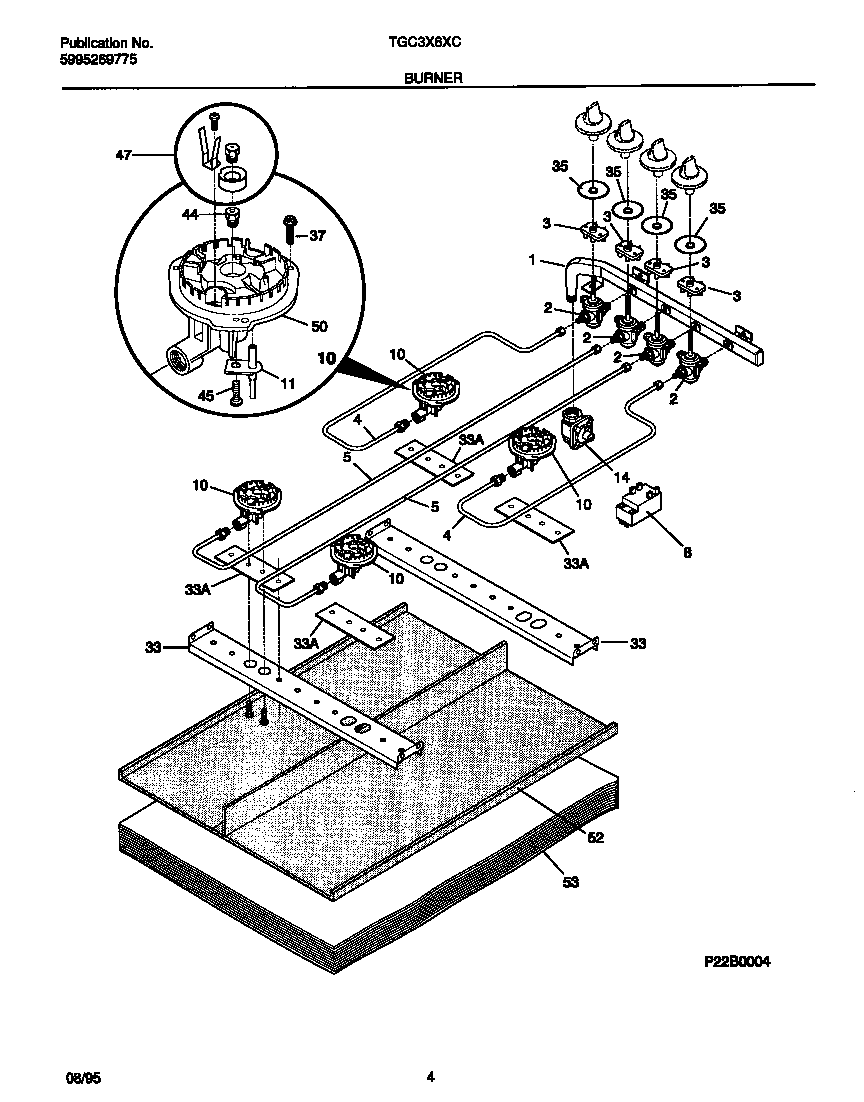

TGC3X6XCS1 03 – BURNER

TGC3X6XCS1 03 – BURNER

Written by

in

TGC3X6XCS1 03 – BURNER

Products

PositionProduct
*73087WIRE-IGNITOR (36 INCH)
*73085WIRE-IGNITOR (20 INCH)
*73086WIRE-IGNITOR (30 INCH)
*73082WCI 318065000
*73088HARNESS-WIRING, MAIN
*730895303307980 Frigidaire Oven Screw
*73083WCI 318084000
*73084WIRE-IGNITOR (14 INCH)
1WCI 5303307976
2WCI 5303935042
3SWITCH-IGNITOR
4TUBE-BURNER
5TUBE-BURNER
85304505695 Frigidaire Oven Module
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
11316011200 Frigidaire Oven Top Burner Igniter
145308007974 Frigidaire Pressure Regulator
33WCI 5303307977
33ABRACKET-BURNER MTG
35WCI 5303307978
37WCI 5303311099
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
47WCI 5303319609
50BURNER-TOP, (4), INCLUDES 37
52WCI 5303209024
53WCI 5303209025
