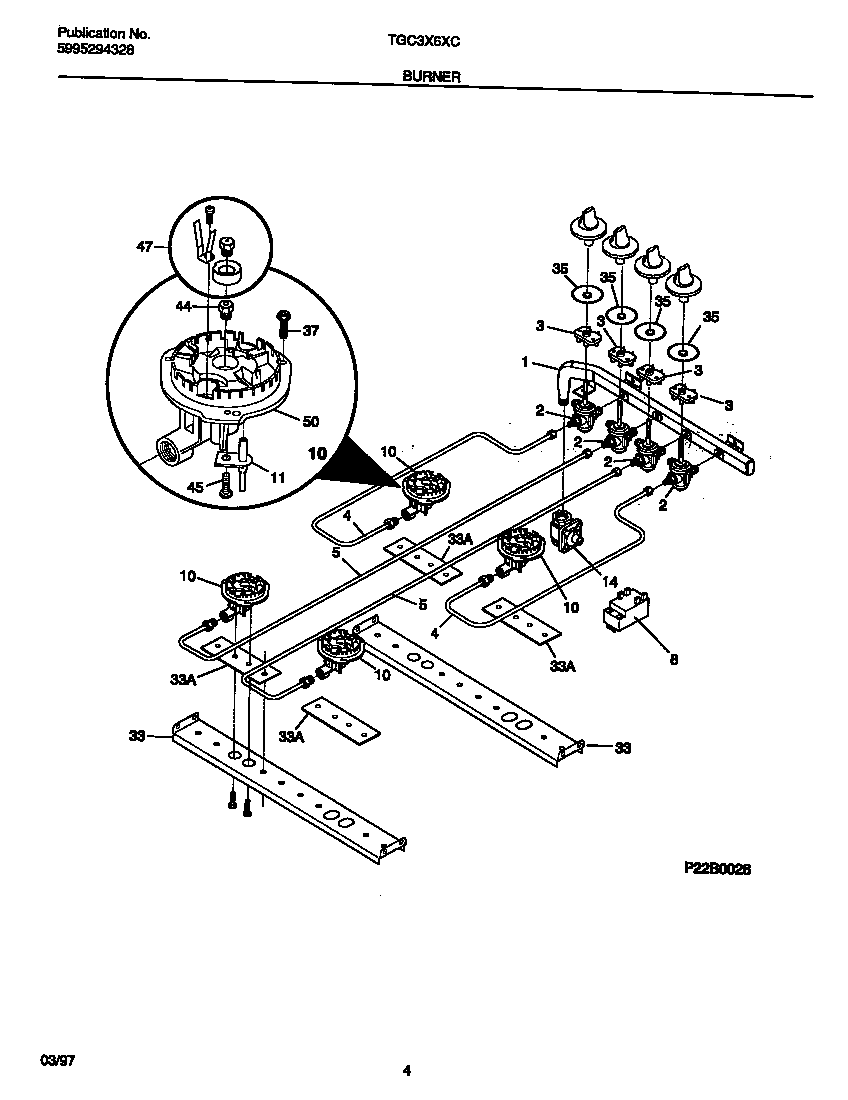

TGC3X6XCT2 03 – BURNER

TGC3X6XCT2 03 – BURNER

Written by

in

TGC3X6XCT2 03 – BURNER

Products

PositionProduct
*41760TRIM RING CHROME
*41763WCI 318065000
*417645303211311 Frigidaire Refrigerator Screw
*417655303307980 Frigidaire Oven Screw
*41761Bracket,retainer
*417625304506478 Frigidaire Seal
1AWCI 5303307976
1B5303311174 Frigidaire Oven Screw
2B316048200 Frigidaire Oven Screw
2AWCI 5303935042
3SWITCH-IGNITOR
4TUBE-BURNER
5TUBE-BURNER
8BWCI 318024200
8A5304505695 Frigidaire Oven Module
10BURNER ASSY
11316011200 Frigidaire Oven Top Burner Igniter
145308007974 Frigidaire Pressure Regulator
33BRACKET-BURNER MTG
33WCI 5303307977
35WCI 5303307978
37SCREW, METRIC
44ORIFICE-TOP BURNER
45WCI 316011100
47WCI 5303302413
50BURNER-TOP, (4), INCLUDES 37
