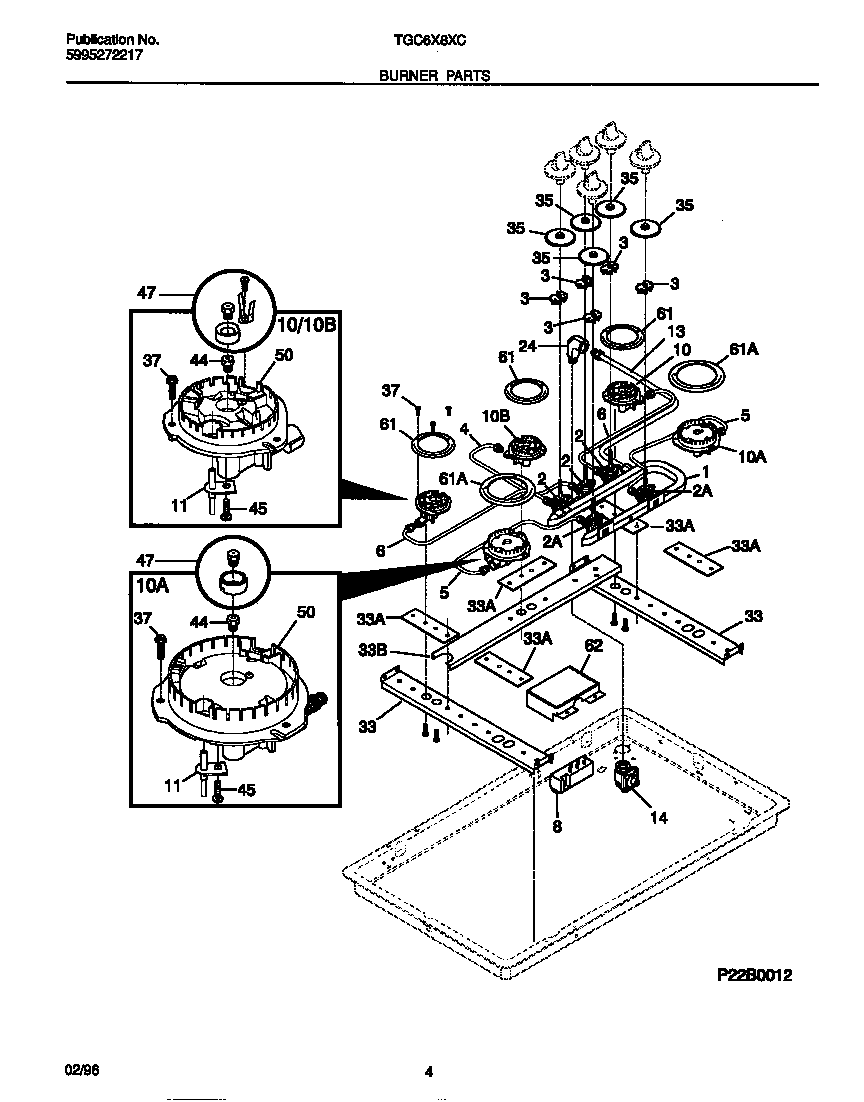

TGC6X8XCS1 03 – BURNER PARTS

TGC6X8XCS1 03 – BURNER PARTS

Written by

in

TGC6X8XCS1 03 – BURNER PARTS

Products

PositionProduct
*56481WCI 318052100
*56480WCI 318065000
1B5303311174 Frigidaire Oven Screw
1AWCI 318078000
2WCI 316036801
2WCI 5303935042
3SWITCH-IGNITOR
4TUBE-BURNER
5WCI 318054601
6AWCI 318054600
6BWCI 5303311261
8WCI 318079000
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
10WCI 318055000
10BURNER ASSY
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 318054500
145308007974 Frigidaire Pressure Regulator
24WCI 318054000
33BRACKET-BURNER MTG
33WCI 5303307977
33WCI 5303311263
35WCI 5303307978
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44CORIFICE-TOP BURNER, (4)
44AWCI 318088701
44BORIFICE-TOP BURNER/ORIFICE
45WCI 316011100
47WCI 5303318666
50A316010601 Frigidaire Top Burner
50BBURNER-TOP, SMALL, (4)
61TRIM RING CHROME
61TRIM RING LARGE
62WCI 318077500
