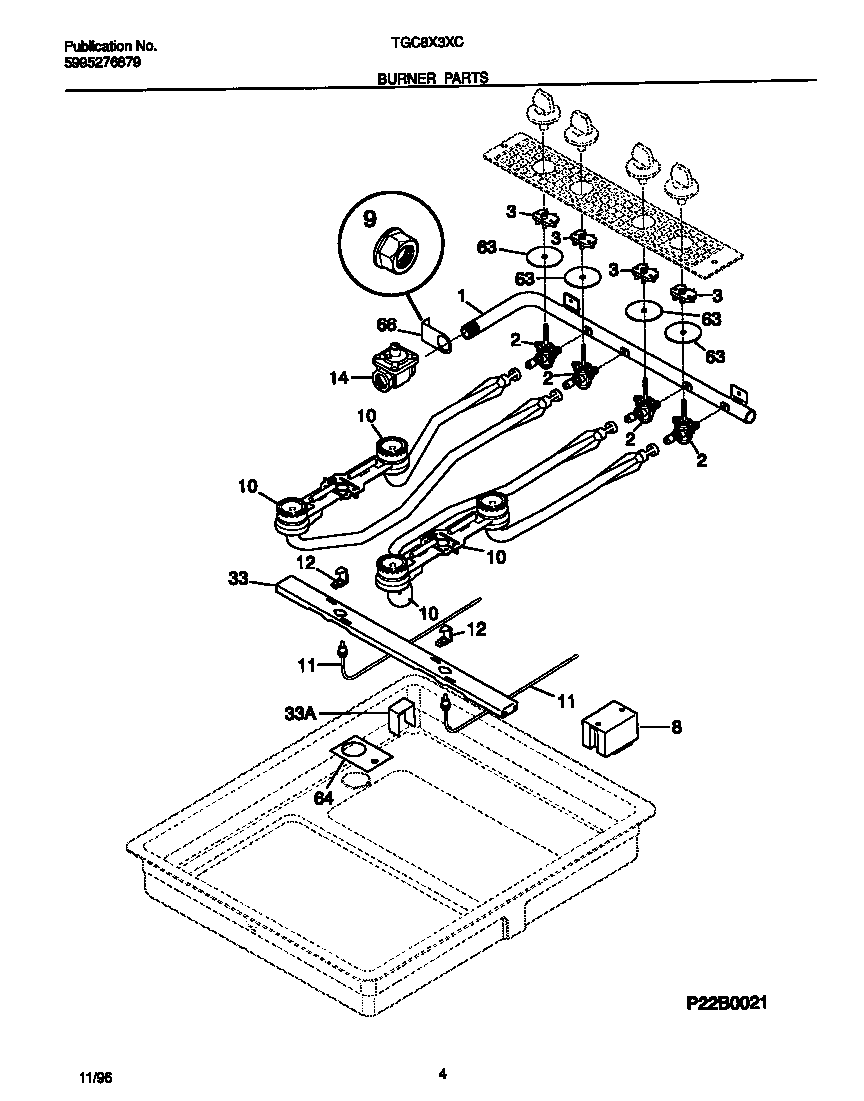

TGC8X3XCD2 03 – BURNER PARTS

TGC8X3XCD2 03 – BURNER PARTS

Written by

in

TGC8X3XCD2 03 – BURNER PARTS

Products

PositionProduct
*740825303289684 Frigidaire FASTENER
1WCI 5303294450
2VALVE-TOP BURNER, (4), WITH MTG SCREWS
3WCI 316032001
8BWCI 5303311312
8A5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9WCI 5303311307
10BWCI 5303317770
10AWCI 5303317771
11AWCI 5303311313
11BWCI 5303311314
123016993 Frigidaire Oven Retainer
145308007974 Frigidaire Pressure Regulator
33ACHANNEL-BURNER SUPPORT
33Bracket,support
33B5304480396 Frigidaire Screw
63SEAL-SWITCH
64RETAINER/BRACKET
66WCI 5303294765
