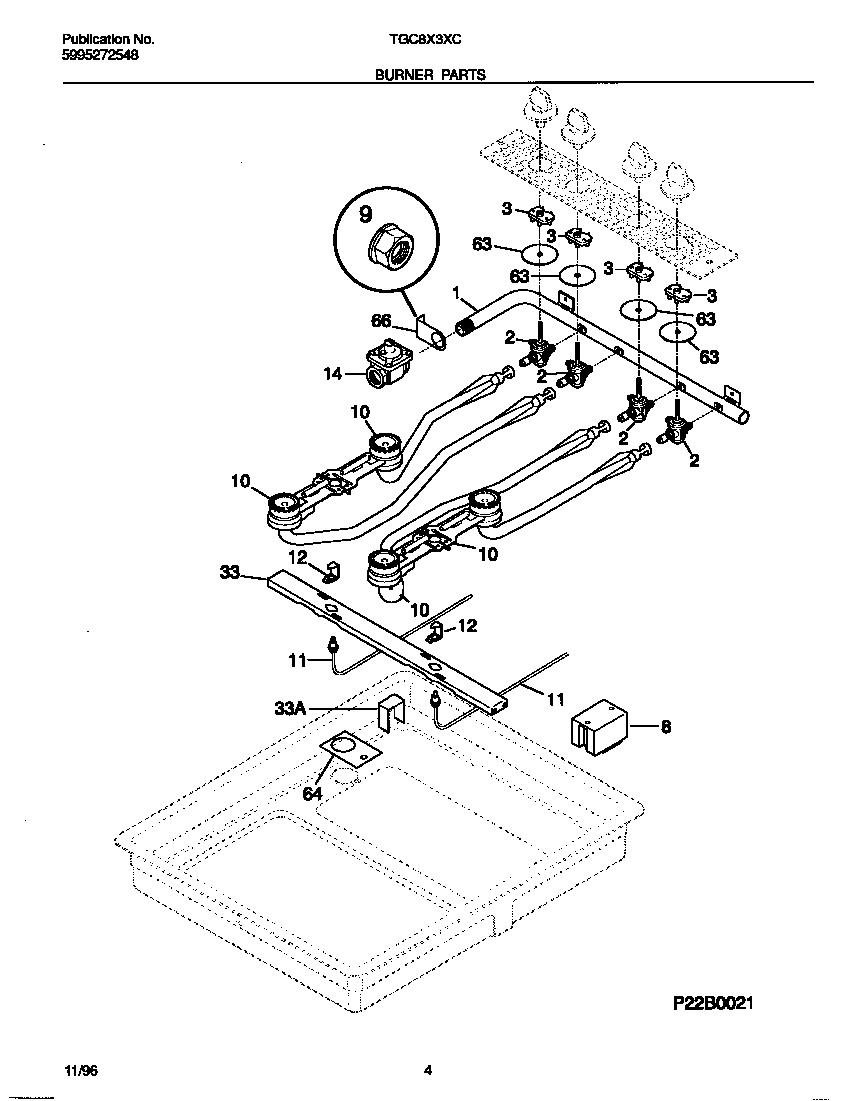

TGC8X3XCDA 03 – BURNER PARTS

Products

Position	Product
*79681	5303289684 Frigidaire FASTENER
1	WCI 5303294450
2	VALVE-TOP BURNER, (4), WITH MTG SCREWS
3	WCI 316032001
8B	WCI 5303311312
8A	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9	WCI 5303311307
10A	BURNER-TOP, FRONT
10B	BURNER-TOP, REAR
11B	WCI 5303311314
11A	WCI 5303311313
12	3016993 Frigidaire Oven Retainer
14	5308007974 Frigidaire Pressure Regulator
33A	CHANNEL-BURNER SUPPORT
33	Bracket,support
33B	5304480396 Frigidaire Screw
63	SEAL-SWITCH
64	RETAINER/BRACKET
66	WCI 5303294765
