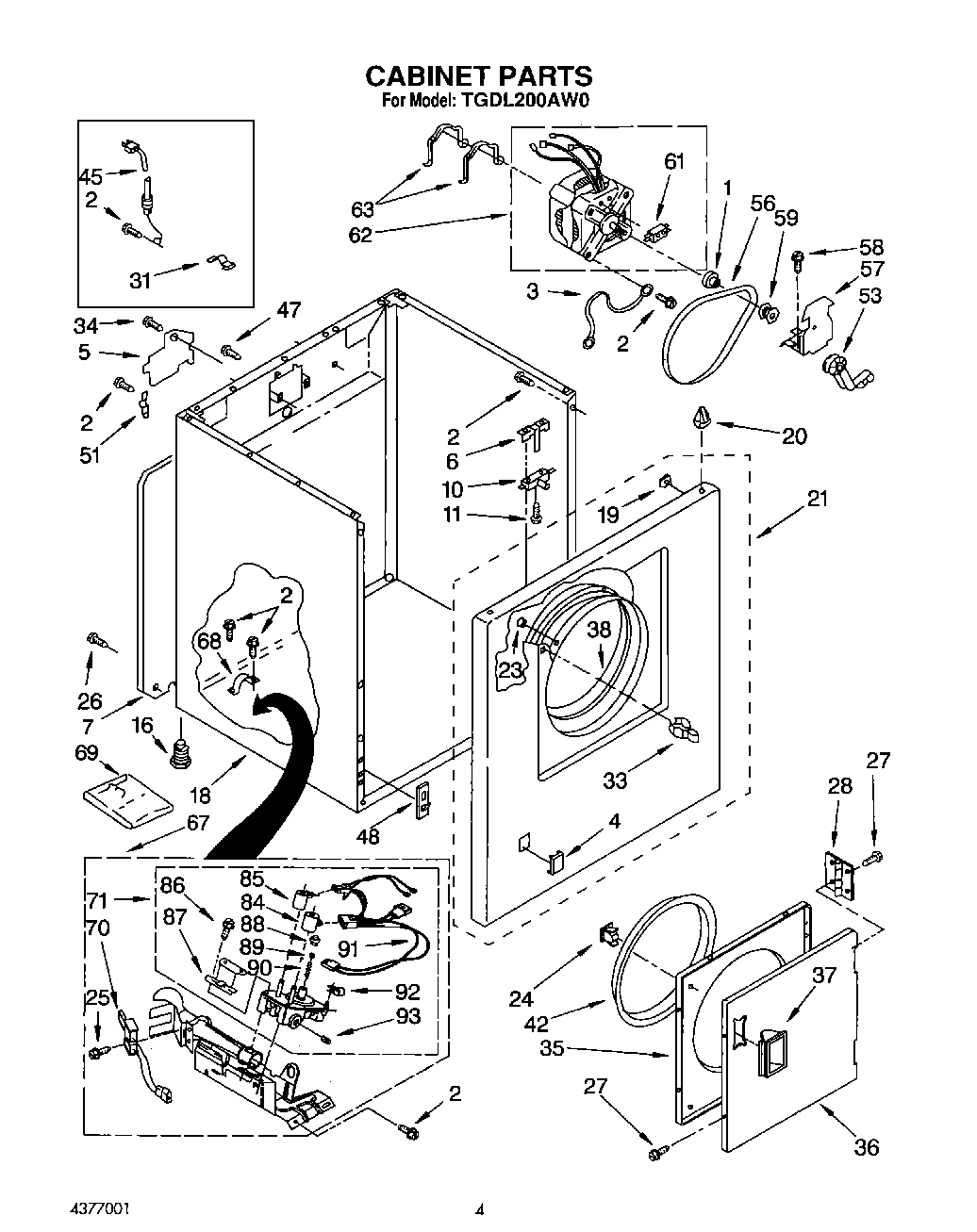

TGDL200AW0 03 – CABINET

Products

PositionProduct
1WP3393657 Whirlpool Belt Retainer
2SCREW
3Wire, Ground (Motor)
4Plug, Front Panel (White)
4Plug, Front Panel (Almond)
5W11736322 Whirlpool Cover Assembly
6WP691581 Whirlpool Actuator
7Panel, Rear
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
1649621 Whirlpool Leveling Feet
18Cabinet (White)
18Cabinet (Almond)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (Almond)
21Front Panel Assembly (White)
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25WPW10366705 Whirlpool Screw
26WP489069 Whirlpool Compactor Screw
27WP694091 Whirlpool Screw
28WP348023 Whirlpool Hinge
318528351 Whirlpool Clip
33279570 Whirlpool Dryer Door Latch Kit
34WP693995 Whirlpool Screw
35280077 Whirlpool Door
36Door, Front (Almond)
36WP348205 Whirlpool Door
37WP686711 Whirlpool Door Handle
37Handle, Door (Almond)
38279264 Whirlpool Bearing and Seal Kit
42W11613302 Whirlpool Door Seal
45W11222083 Whirlpool Power Cord
47W10850756 Whirlpool Screw
48W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
67Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68341029 Whirlpool Clamp
6949572A Whirlpool Dryer Propane Gas Conversion Kit
69Kit, Conversion Type 1 To Type 3 (MFD)
70279311 Whirlpool Dryer Flat Igniter with Bracket
71279923 Whirlpool Gas Valve
84279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
86694421 Whirlpool Screw Assembly
87694538 Whirlpool Bracket
88WP694424 Whirlpool Limiter
89WP694423 Whirlpool Regulator
90WP694422 Whirlpool Spring
91WP3401850 Whirlpool Wire Harness
92WPL 694510
93W10295523 Whirlpool Plug
