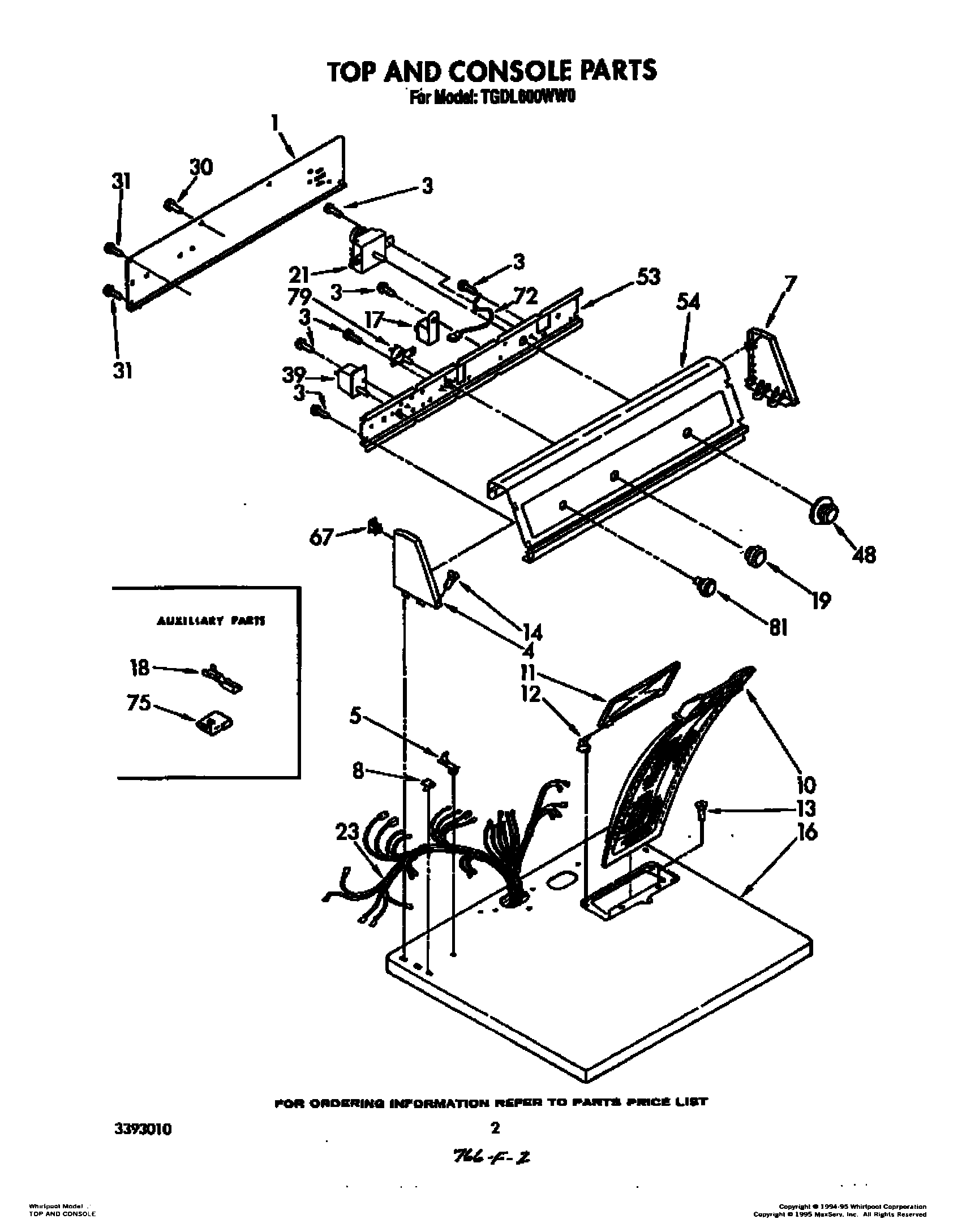

TGDL600WN0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT3393010
WPL LIT3391362
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Golden Harvest (Uncut)
Golden Harvest
72113 Whirlpool Touch-Up Paint
Toast
Almond (Uncut)
Leveler (Thinner)
WPL 72112
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Platinum (Uncut)
WP72107 Whirlpool Touchup
WPL LIT3393135
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1Panel, Rear
3WP3390631 Whirlpool Screw
4Cap, End (L.H.)
5Stop, Push-In Top
7Cap, End (R.H.)
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (White)
16Top (Almond)
17WP694419 Whirlpool Buzzer Adjuster
18WP94614 Whirlpool Terminal
19Control Knob, Temperature
21Timer Assembly, 60 Hz.
23Harness, Wiring
30WP693995 Whirlpool Screw
31WP489069 Whirlpool Compactor Screw
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
67WP689559 Whirlpool Nut
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
79Switch, Temperature Selector
81Knob, Push-To-Start
