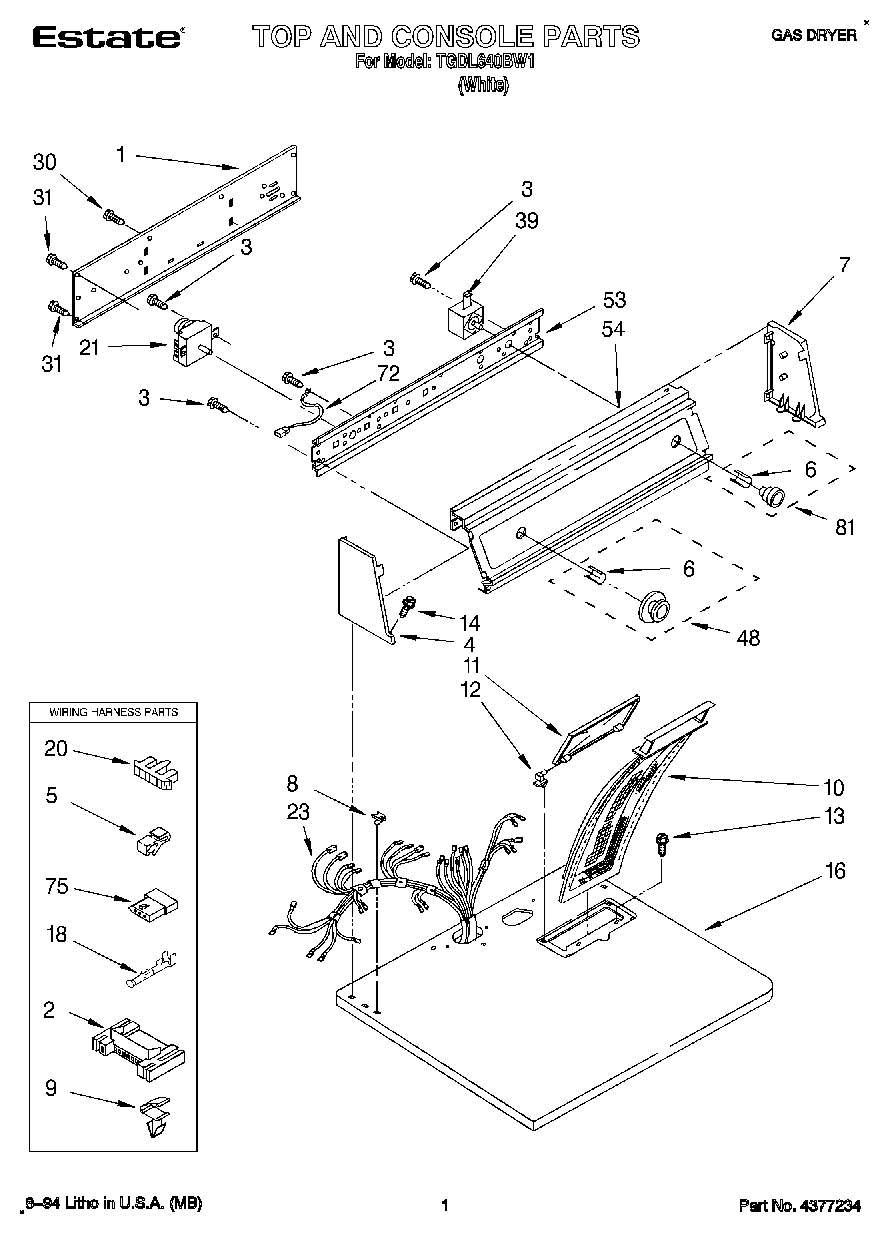

TGDL640BW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Label, Wiring Diagram
	Instructions, Installation
	Guide, Use & Care
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	3395683 Whirlpool Connector
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.)
5	Clip, Retainer
6	WP688805 Whirlpool Spring Clip
7	Cap, End (R.H.)
8	WP357213 Whirlpool Hinge Stopper
9	WP3394427 Whirlpool Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
16	Top (White)
18	WP94614 Whirlpool Terminal
20	Connector, Timer
21	Timer, 60 Hz.
23	Harness, Wiring
30	WP693995 Whirlpool Screw
31	WP489069 Whirlpool Compactor Screw
39	WP3395382 Whirlpool Push To Start Switch
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
81	Button, Push-To-Start
