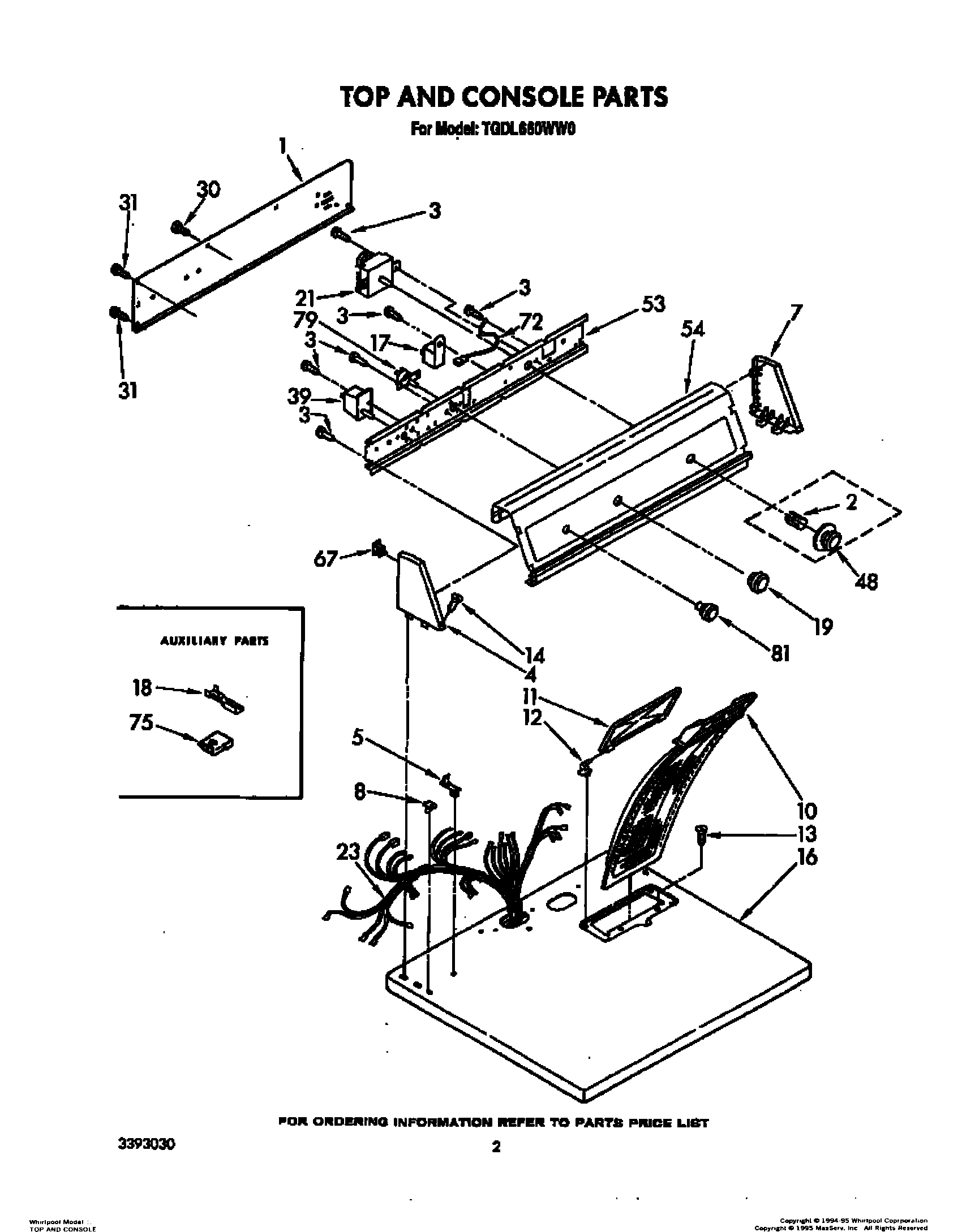

TGDL660WW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Enamal, Toast (1 Qt. Uncut)
	WPL LIT3393135
	WPL LIT3391362
	Paint, Spray (13 Oz.) (Platinum)
	Golden Harvest (Uncut)
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	Toast
	Almond (Uncut)
	Leveler (Thinner)
	WPL 72112
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Platinum (Uncut)
	WP72107 Whirlpool Touchup
	WPL LIT3393030
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1	Panel, Rear
2	WP688805 Whirlpool Spring Clip
3	WP3390631 Whirlpool Screw
4	Cap, End (L.H.)
5	Stop, Push-In Top
7	Cap, End (R.H.)
8	Nut, Push-In (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (Almond)
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	WP94614 Whirlpool Terminal
19	Control Knob, Temperature
21	Timer Assembly, 60 Hz.
23	Harness, Wiring
30	WP693995 Whirlpool Screw
31	WP489069 Whirlpool Compactor Screw
39	(Alt.)
39	Switch, Push-To-Start
39	Switch, Push-To-Start (Alternate)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	Switch, Temperature Selector
81	Knob, Push-To-Start
