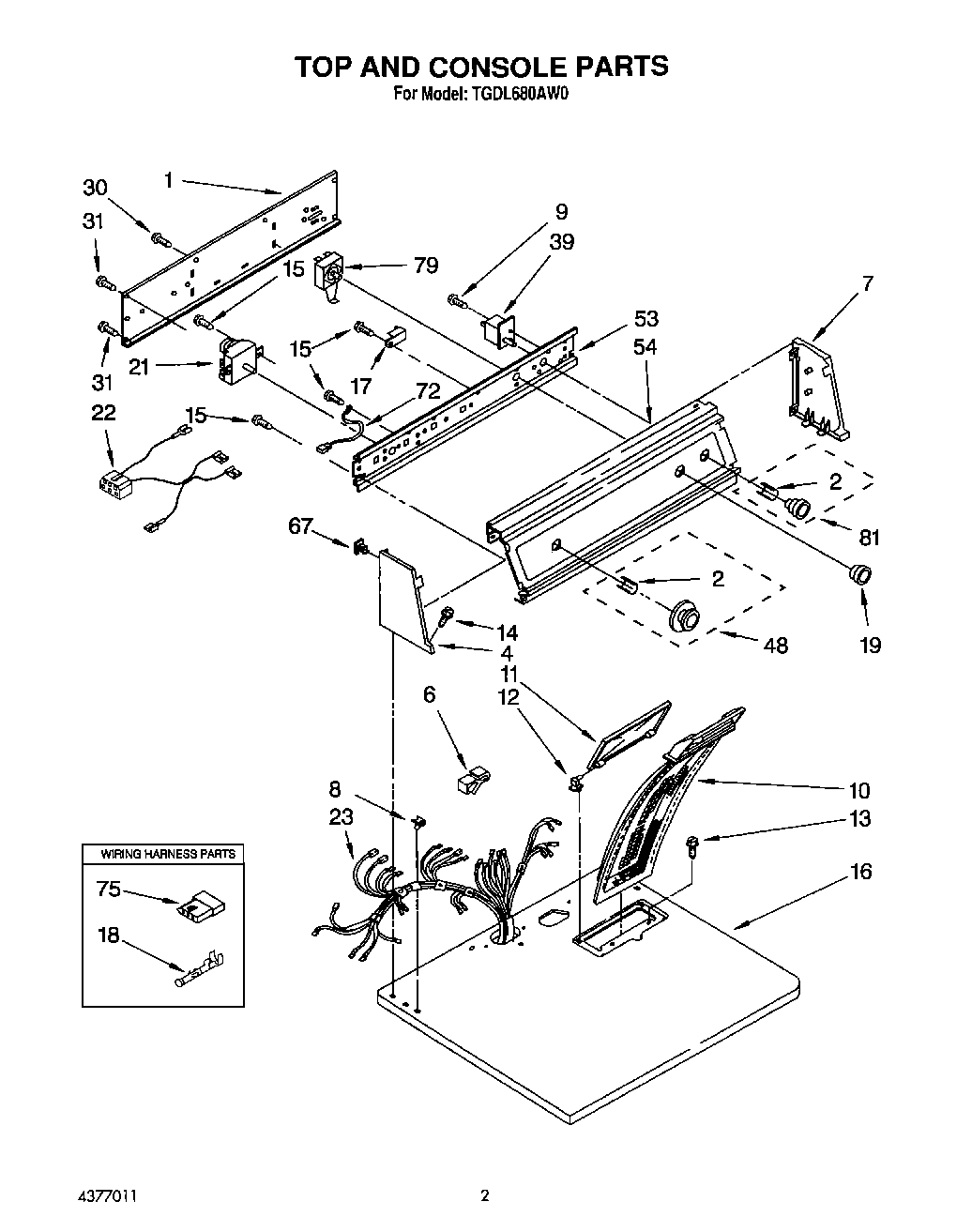

TGDL680AW0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	List, Service Parts
	Instructions, Installation
	799344 Whirlpool Refrigerator Paint
	Use & Care Guide
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear Console
2	WP688805 Whirlpool Spring Clip
4	Cap, End (L.H.)
6	Clip, Retainer
7	Cap, End (R.H.)
8	WP357213 Whirlpool Hinge Stopper
9	WP488729 Whirlpool Refrigerator Door Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WPW10139210 Whirlpool Screw
16	Top (White)
16	Top (Almond)
17	WP694419 Whirlpool Buzzer Adjuster
18	WP94614 Whirlpool Terminal
19	Knob, Control (For Almond Model)
21	WP3976569 Whirlpool Timer
22	Wire-Jumper Assembly
23	Harness, Wiring
30	WP693995 Whirlpool Screw
31	WP489069 Whirlpool Compactor Screw
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	Switch, Temperature
81	Button, Push-To-Start
