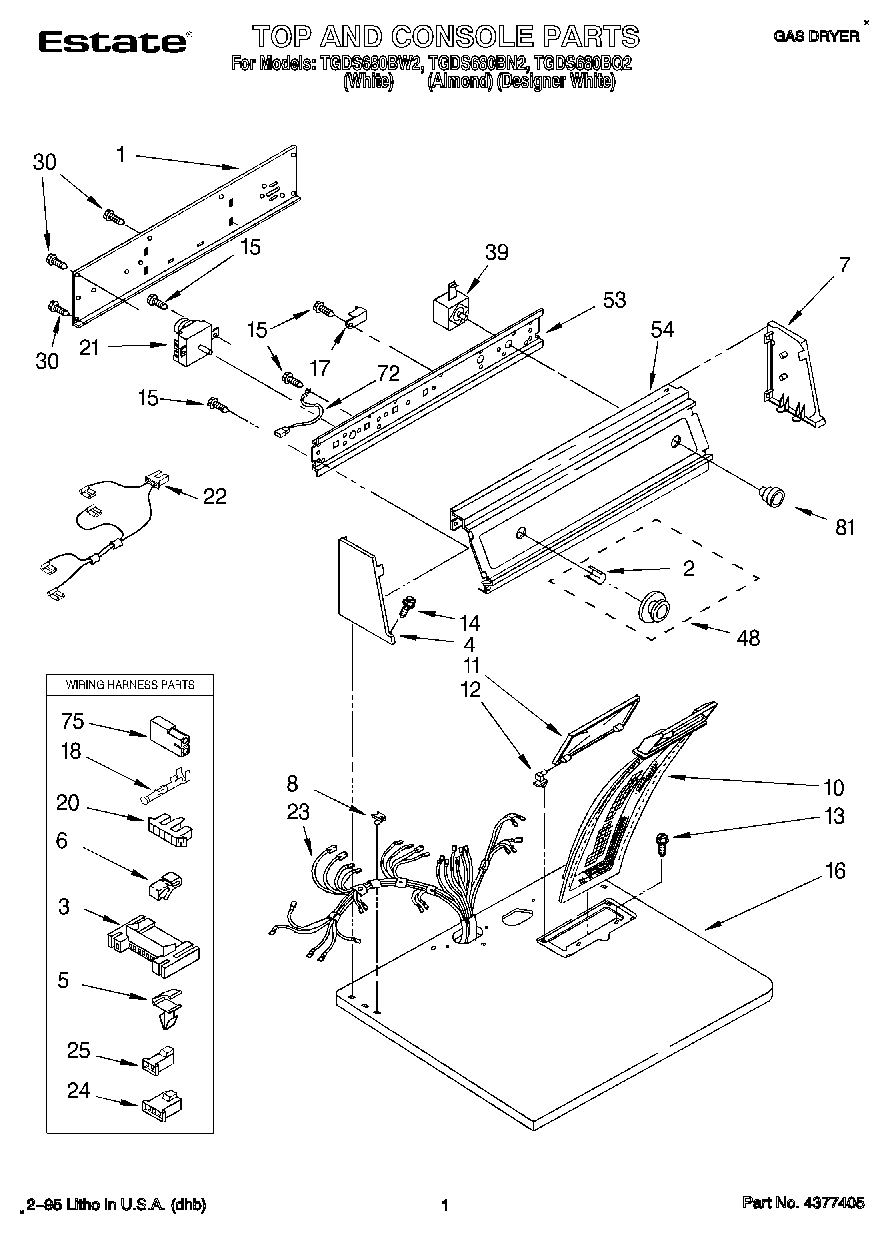

TGDS680BQ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

TGDS680BQ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

TGDS680BQ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Label, Wiring Diagram
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Guide, Use & Care
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP688805 Whirlpool Spring Clip
33395683 Whirlpool Connector
4Cap, End (L.H.)
4FOR MODEL REL4632BQ3
5WP3394427 Whirlpool Clip
6Clip, Retainer
7FOR MODEL REL4632BQ3
7Cap, End (R.H.)
8WP357213 Whirlpool Hinge Stopper
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WPW10139210 Whirlpool Screw
16Top (White)
16Top (Almond)
17WP694419 Whirlpool Buzzer Adjuster
18WP94614 Whirlpool Terminal
20Connector, Timer
21WP3976569 Whirlpool Timer
22Wire, Jumper
23Harness, Wiring
24Connector, 3-Position (Gas Valve)
25Connector, 2-Position (Gas Valve)
30WP693995 Whirlpool Screw
39Switch, Push-To-Start
48FOR MODEL TEDS680BQ1
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
54FOR MODEL TEDS680BQ1
72Wire, Ground
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
81Knob, Control (For Almond Model)
81Knob, Control (For Designer White Model)
