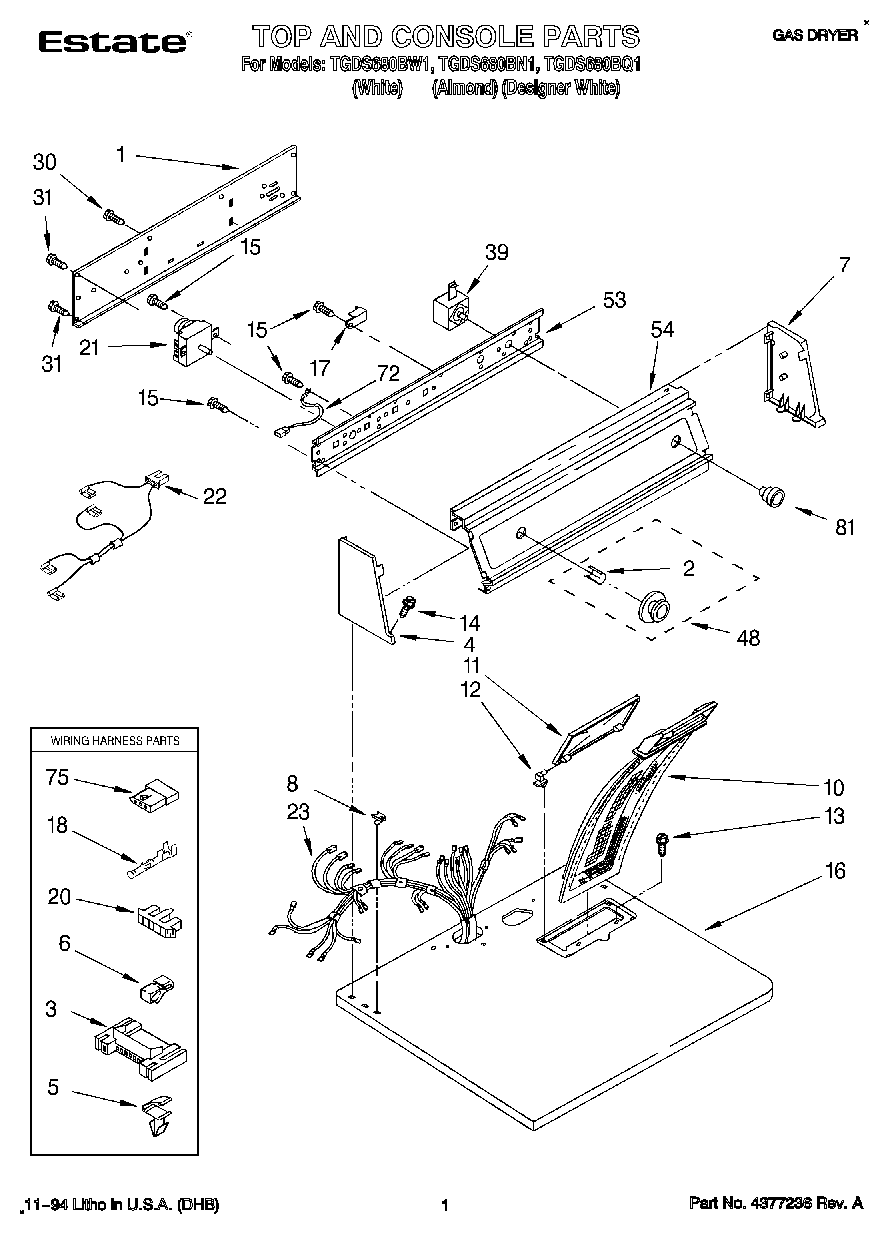

TGDS680BW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

TGDS680BW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

TGDS680BW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Guide, Use & Care
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Label, Wiring Diagram
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP688805 Whirlpool Spring Clip
33395683 Whirlpool Connector
4FOR MODEL REL4632BQ3
4Cap, End (L.H.)
5WP3394427 Whirlpool Clip
6Clip, Retainer
7FOR MODEL REL4632BQ3
7Cap, End (R.H.)
8WP357213 Whirlpool Hinge Stopper
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WPW10139210 Whirlpool Screw
16Top (White)
16Top (Almond)
17WP694419 Whirlpool Buzzer Adjuster
18WP94614 Whirlpool Terminal
20Connector, Timer
21WP3976569 Whirlpool Timer
22Wire, Jumper
23Harness, Wiring
30WP693995 Whirlpool Screw
31WP489069 Whirlpool Compactor Screw
39Switch, Push-To-Start
48Timer Knob Assembly
48FOR MODEL TEDS680BQ1
53Bracket, Control
54Panel, Control
54FOR MODEL TEDS680BQ1
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81Knob, Control (For Almond Model)
81Knob, Control (For Designer White Model)
