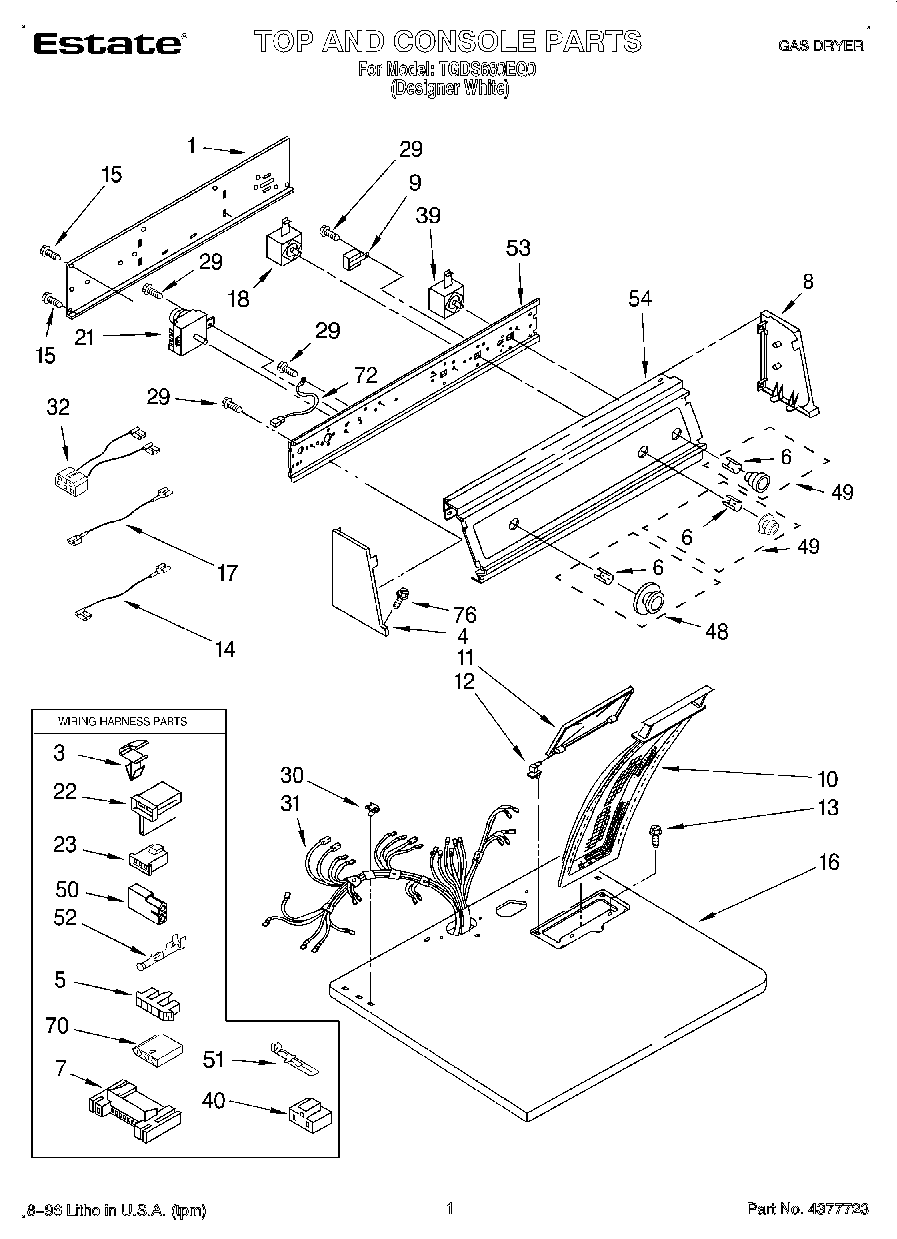

TGDS680EQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Guide, Use & Care
	Label, Wiring Diagram
1	Panel, Rear Console
3	WP3394427 Whirlpool Clip
4	Cap, End (L.H.) (White)
5	Connector, Timer
6	WP688805 Whirlpool Spring Clip
7	3395683 Whirlpool Connector
8	Cap, End (R.H.) (White)
9	WP694419 Whirlpool Buzzer Adjuster
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper (Tan)
15	WP693995 Whirlpool Screw
16	Top (White)
17	Wire, Jumper (Black)
18	3399638 Whirlpool Switch
21	WP3976574 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8283286 Whirlpool Wire Harness
39	Relay, Push To Start
40	3401144 Whirlpool Connector
48	For Model REX4635EQ1
49	Knob, Control (White)
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
51	WP596797 Whirlpool Terminal
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control (White)
70	Connector (Door Switch)
72	Wire, Ground
76	WP388326 Whirlpool Screw
