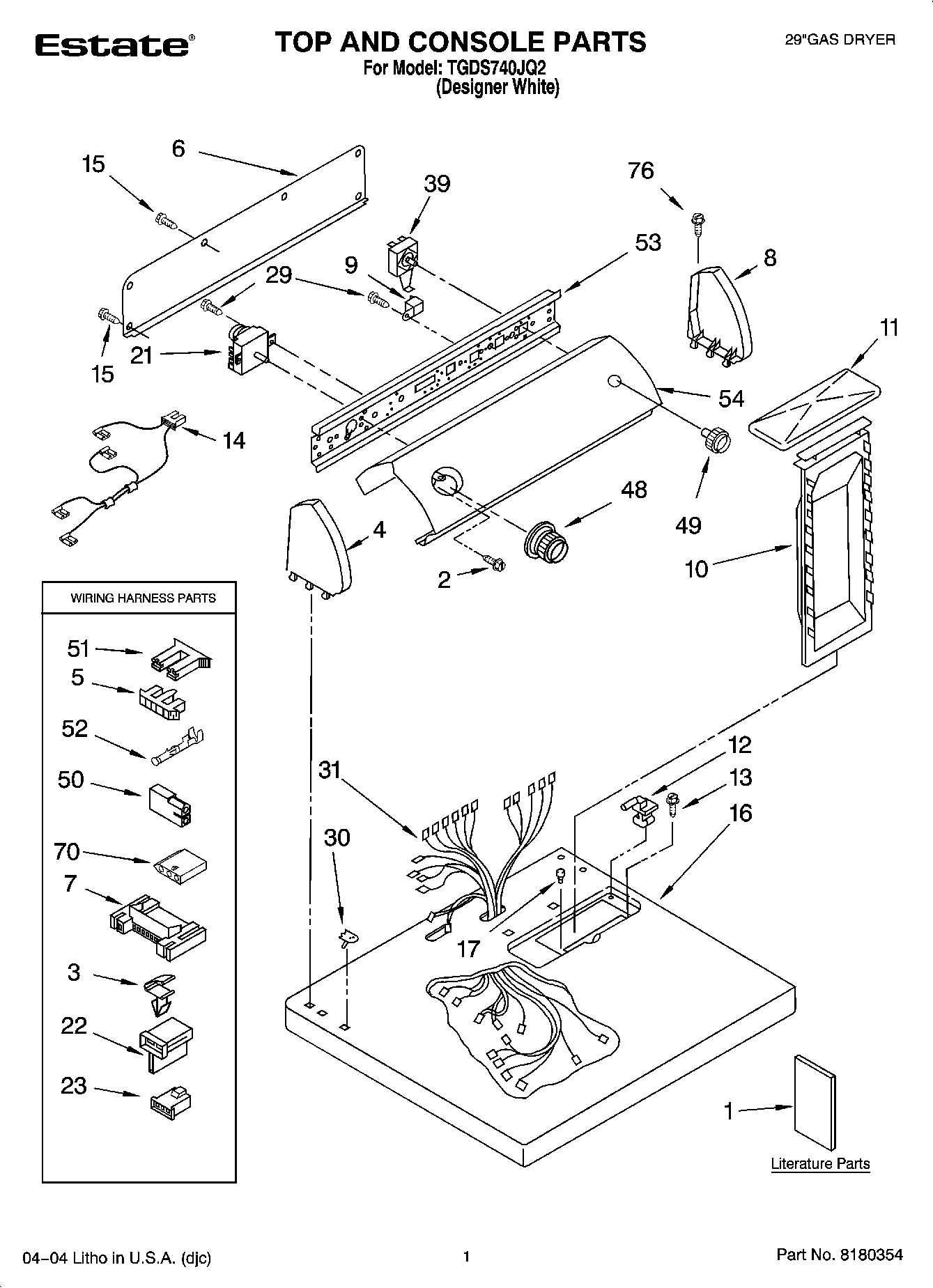

TGDS740JQ2 01 – TOP AND CONSOLE PARTS

TGDS740JQ2 01 – TOP AND CONSOLE PARTS

Written by

in

TGDS740JQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Literature Parts (Instructions, Installation)
1Literature Parts (Label, Wiring Diagram)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Dryer
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8279960 Whirlpool Endcap Assembly
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper
15WP693995 Whirlpool Screw
16Top
17Bumper, Lint Lid
21WP3976584 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39Switch, Push-To-Start
48WP3957746 Whirlpool Knob Assembly
49WP3957796 Whirlpool Knob
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
513354925 Whirlpool Connector
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
703936144 Whirlpool Connector
76WPL ARI164458A
76WP388326 Whirlpool Screw
76799344 Whirlpool Refrigerator Paint
7672017 Whirlpool Appliance Touch-Up Paint White
764392065 Whirlpool Dryer Maintenance Kit
76W11224254 Whirlpool Test Kit
76KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
763404351 Whirlpool Dryer Rack
76350938 Whirlpool Spray Gun
76350930 Whirlpool White Spray Paint
