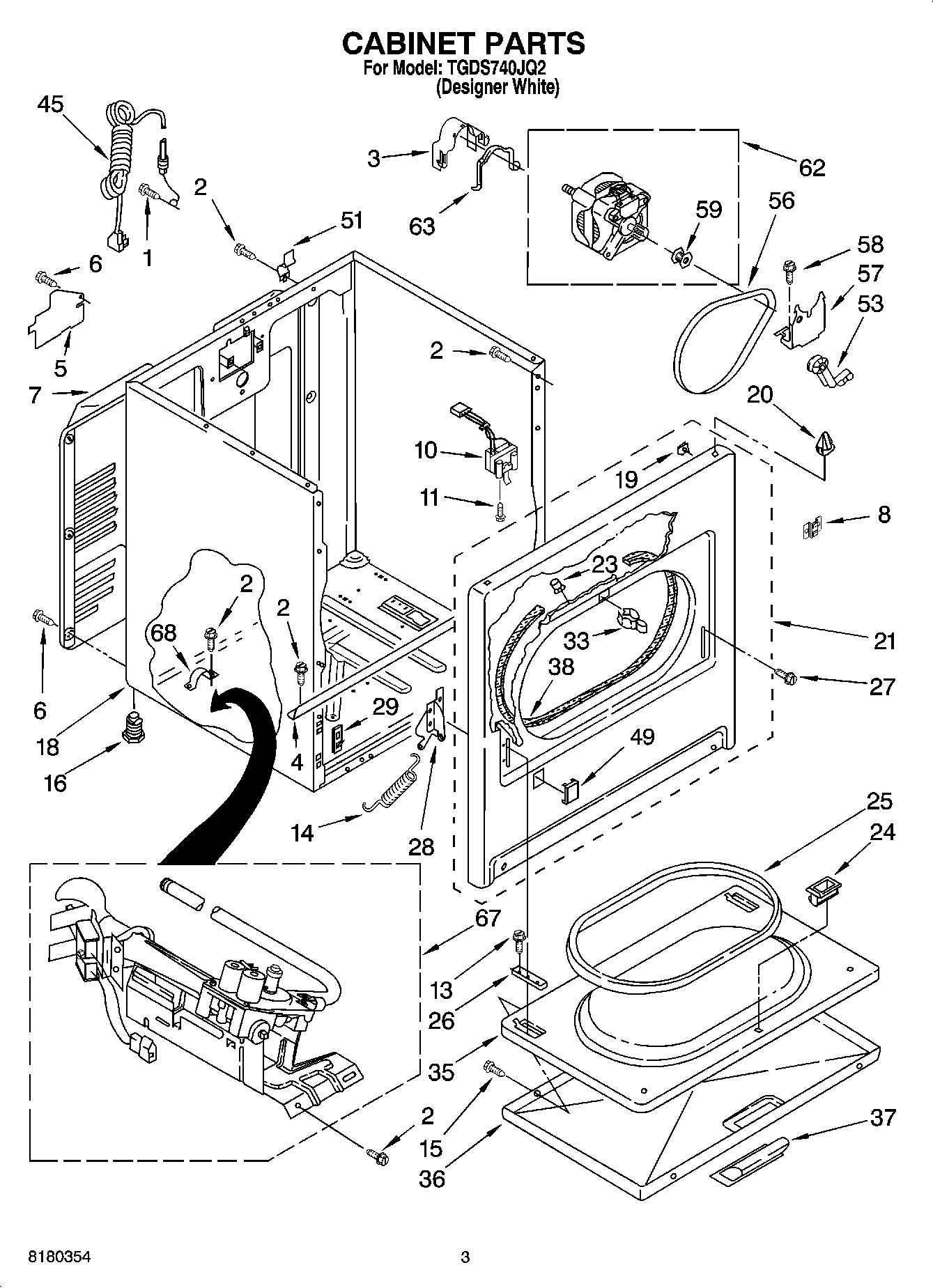

TGDS740JQ2 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP3404162 Whirlpool Clamp
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	WP693995 Whirlpool Screw
7	280043 Whirlpool Rear Panel
8	8546676 Whirlpool Clip
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
13	WP694091 Whirlpool Screw
14	8541401 Whirlpool Door Spring
15	WP308685 Whirlpool Microwave Screw
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	279740 Whirlpool Panel Primary with O/S2
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	Screw, 10-32 x 1/2
28	WP8066057 Whirlpool Door Hinge
28	WP8066056 Whirlpool Door Hinge
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33	279570 Whirlpool Dryer Door Latch Kit
35	WP695737 Whirlpool Door
36	WP3393549 Whirlpool Door Assembly
37	WP348721 Whirlpool Handle
38	W11035878 Whirlpool Bearing and Seal
45	W11222083 Whirlpool Power Cord
49	Plug, Front Panel (White)
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	W10823508 Whirlpool Gas Burner
68	341029 Whirlpool Clamp
