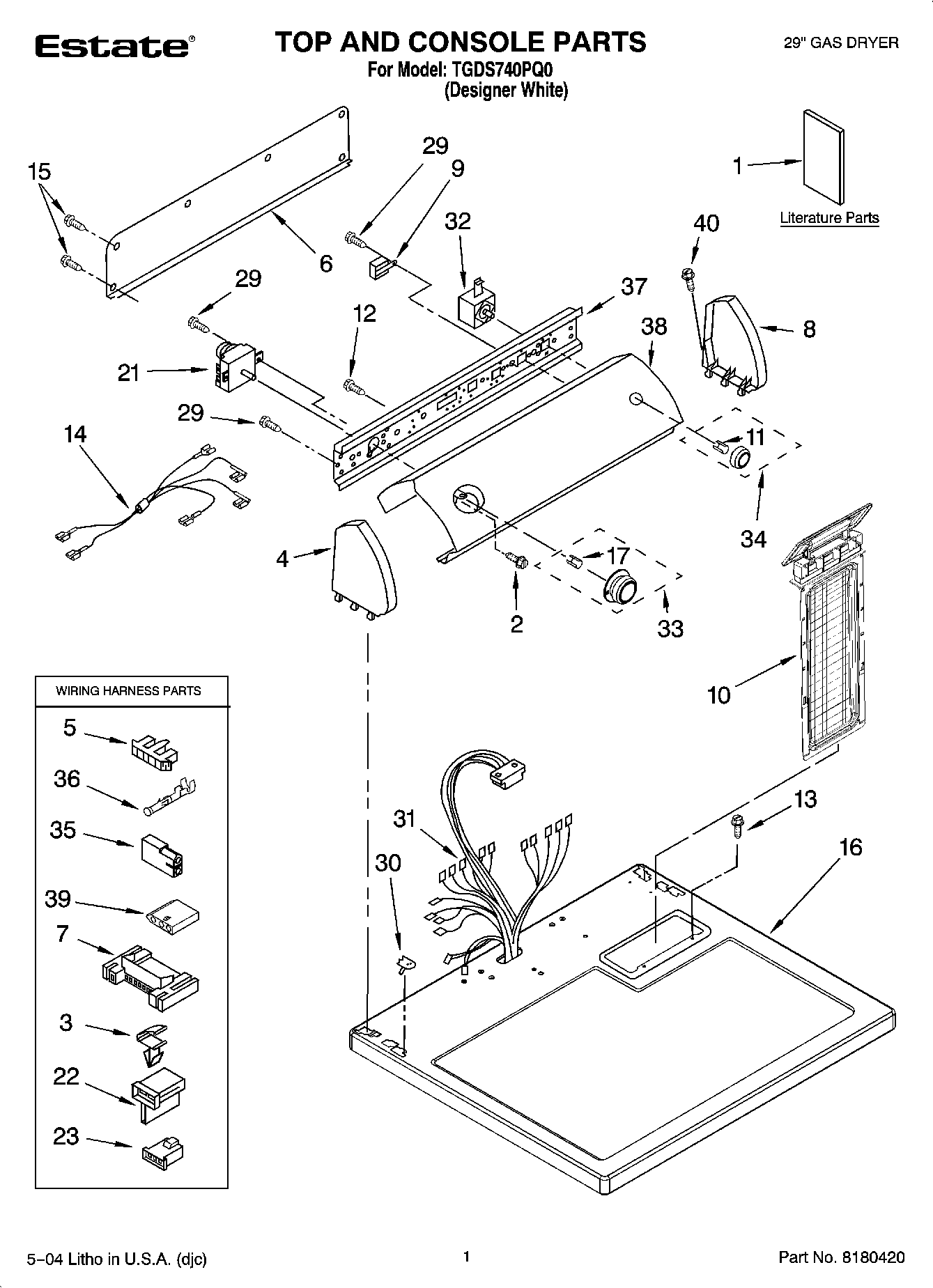

TGDS740PQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	WPL 677818
1	Wiring Diagram
1	Installation Instructions
1	Guide, Use & Care
1	Sheet, Cycle Feature
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	279960 Whirlpool Endcap Assembly
9	WP694419 Whirlpool Buzzer Adjuster
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper (PTS to Buzzer)
15	WP693995 Whirlpool Screw
16	Top
17	WP688805 Whirlpool Spring Clip
21	WP3976584 Whirlpool Timer Assembly
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP3404233 Whirlpool Dryer Starter Switch
33	Timer Knob Assembly
34	WP8557460 Whirlpool Knob
35	Receptacle, Latching (2-Way) (Uses Terminal 94614)
36	WP94614 Whirlpool Terminal
37	Bracket, Control
38	Panel, Control
39	3936144 Whirlpool Connector
40	350938 Whirlpool Spray Gun
40	72017 Whirlpool Appliance Touch-Up Paint White
40	799344 Whirlpool Refrigerator Paint
40	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
40	350930 Whirlpool White Spray Paint
40	WP388326 Whirlpool Screw
40	W11224254 Whirlpool Test Kit
40	4392065 Whirlpool Dryer Maintenance Kit
40	3404351 Whirlpool Dryer Rack
40	ACCESSORY PARTS
