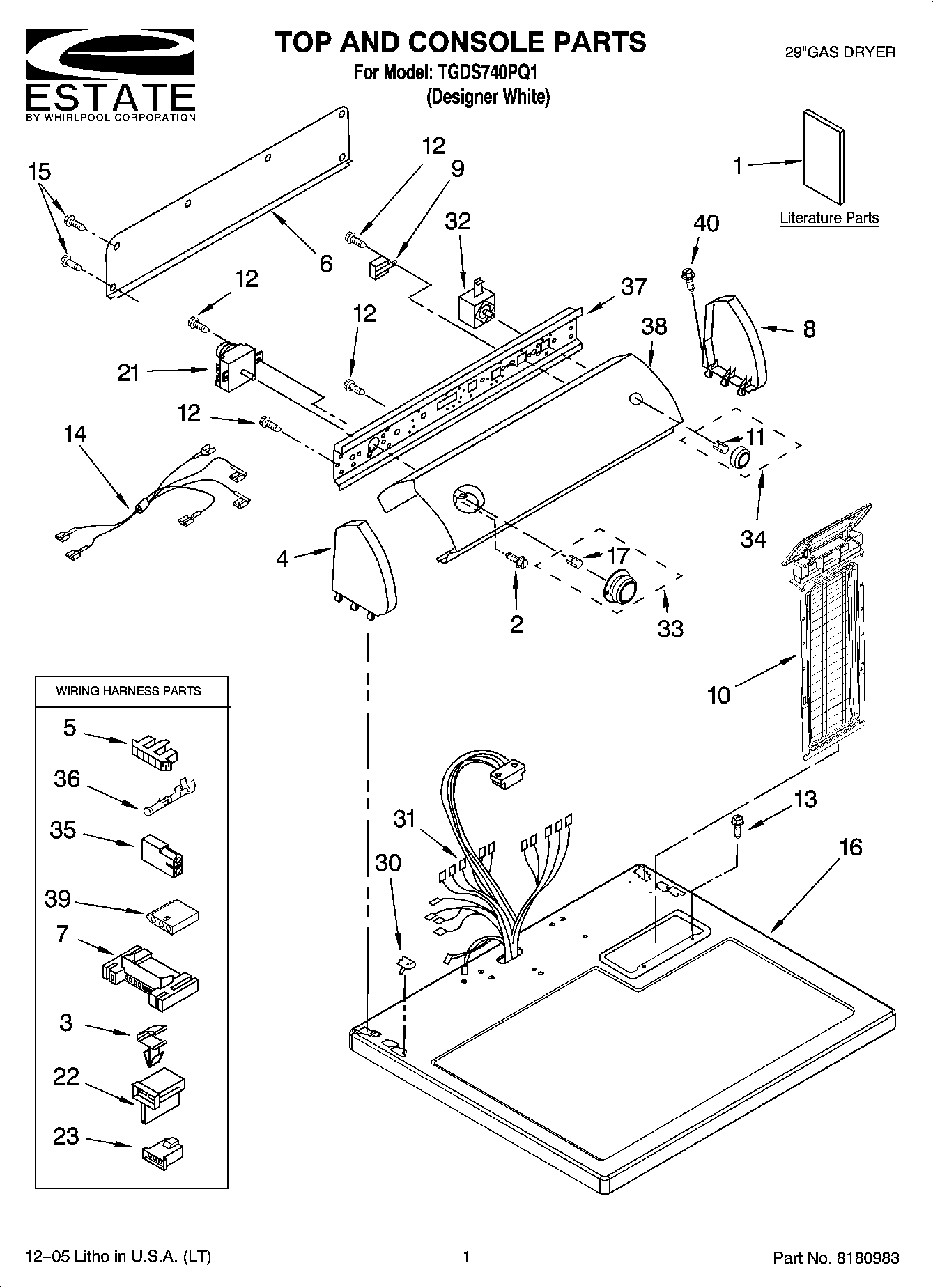

TGDS740PQ1 01 – TOP AND CONSOLE PARTS

TGDS740PQ1 01 – TOP AND CONSOLE PARTS

Written by

in

TGDS740PQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1WPL 677818
1Installation Instructions
1Use & Care Guide
1Sheet, Cycle Feature
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8279960 Whirlpool Endcap Assembly
9WP694419 Whirlpool Buzzer Adjuster
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper (PTS to Buzzer)
15WP693995 Whirlpool Screw
16Top
17WP688805 Whirlpool Spring Clip
21WP3976584 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP8543274 Whirlpool PTS Switch
33Timer Knob Assembly
34WP8557460 Whirlpool Knob
35Receptacle, Latching (2-Way) (Uses Terminal 94614)
36WP94614 Whirlpool Terminal
37Bracket, Control
38Panel, Control
393936144 Whirlpool Connector
40WP388326 Whirlpool Screw
