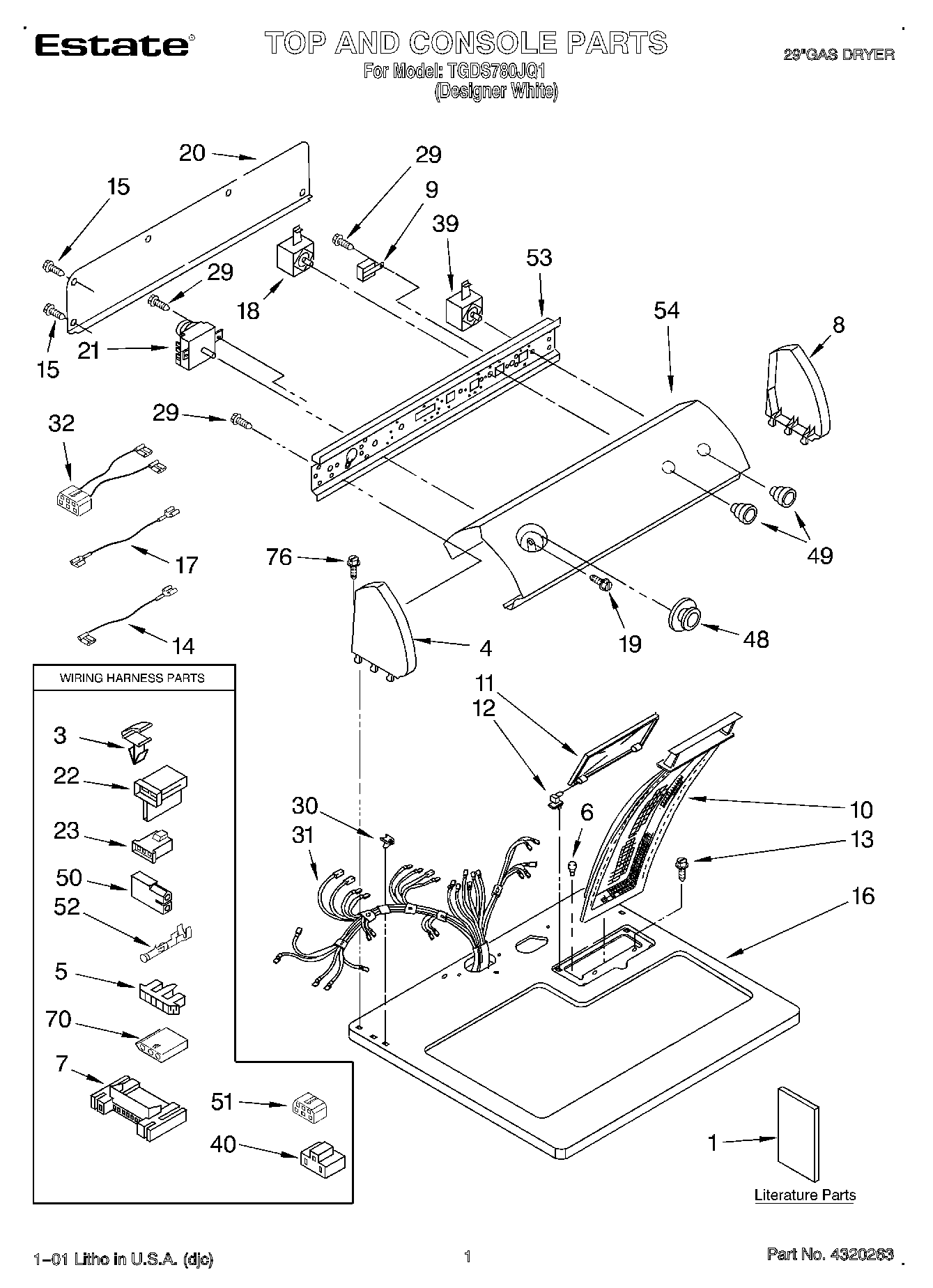

TGDS780JQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
1WPL LIT3406692
1Literature Parts (Instructions, Installation)
1Literature Parts (Guide, Use & Care)
3WP3394427 Whirlpool Clip
5Connector, Timer
6Bumper, Lint Lid
73395683 Whirlpool Connector
8279960 Whirlpool Endcap Assembly
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper (Tan)
15WP693995 Whirlpool Screw
16Top
17Wire, Jumper (Black)
18WP3399639 Whirlpool Switch
193400859 Whirlpool Screw
20W10103406 Whirlpool Rear Panel
21WP8299765 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328539893 Whirlpool Wire Harness
39Relay, Push To Start
403401144 Whirlpool Connector
48WP3957746 Whirlpool Knob Assembly
49WP3957796 Whirlpool Knob
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
51Block, Disconnect
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
703936144 Whirlpool Connector
763404351 Whirlpool Dryer Rack
7672017 Whirlpool Appliance Touch-Up Paint White
76350938 Whirlpool Spray Gun
76799344 Whirlpool Refrigerator Paint
76350930 Whirlpool White Spray Paint
76WP388326 Whirlpool Screw
