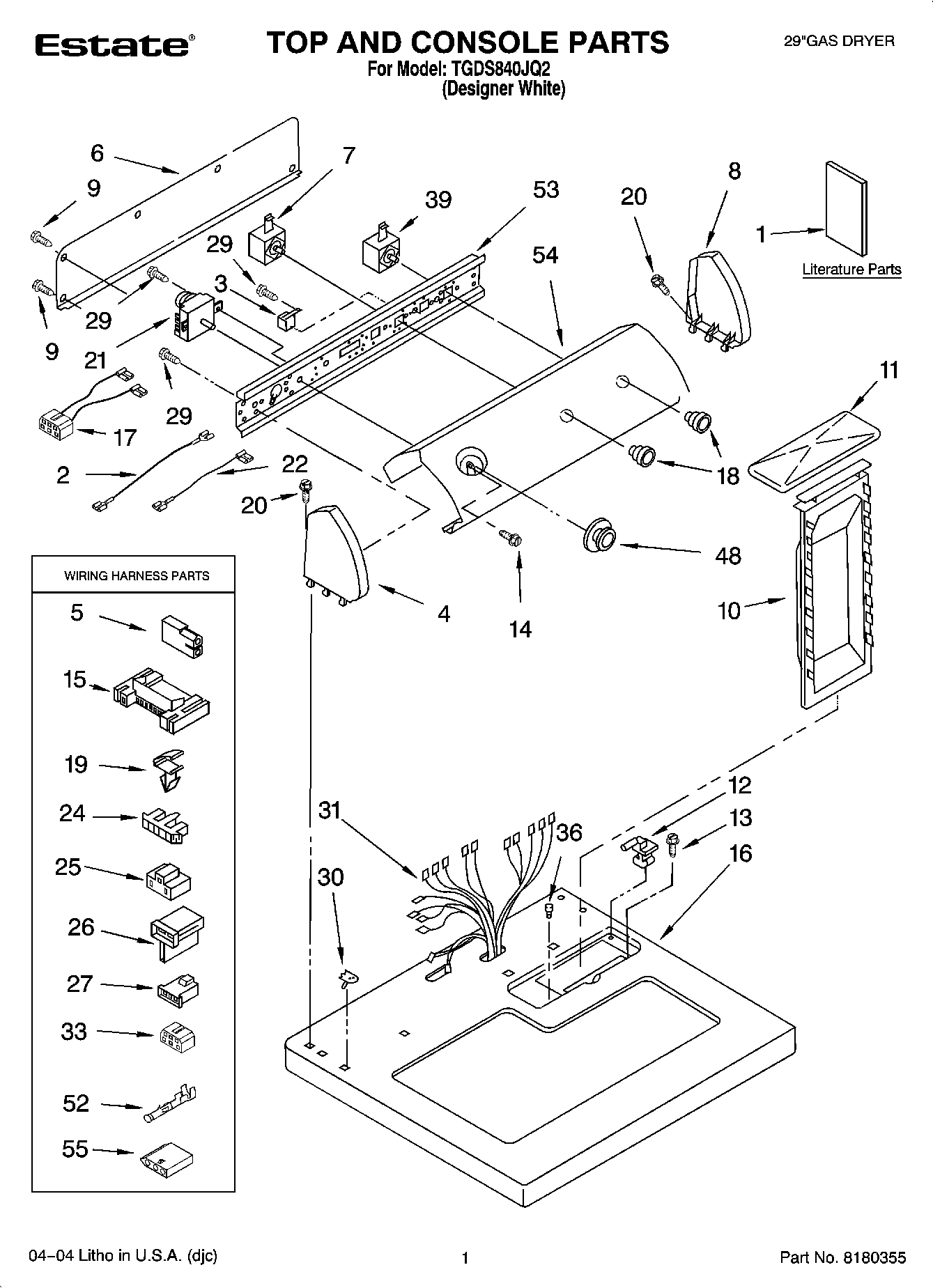

TGDS840JQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Label, Wiring Diagram)
1Dryer
1Literature Parts (Instructions, Installation)
1Literature Parts (Use & Care Guide)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8279960 Whirlpool Endcap Assembly
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
178539893 Whirlpool Wire Harness
18WP3957796 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299765 Whirlpool Timer
22Wire, Jumper (Tan)
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
33Block, Disconnect
36Bumper, Lint Lid
39Relay, Push To Start
48WP3957746 Whirlpool Knob Assembly
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
55350938 Whirlpool Spray Gun
55KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
5572017 Whirlpool Appliance Touch-Up Paint White
553936144 Whirlpool Connector
55799344 Whirlpool Refrigerator Paint
55W11224254 Whirlpool Test Kit
55350930 Whirlpool White Spray Paint
553406839 Whirlpool Drying Rack
554392065 Whirlpool Dryer Maintenance Kit
55WPL ARI164467A
