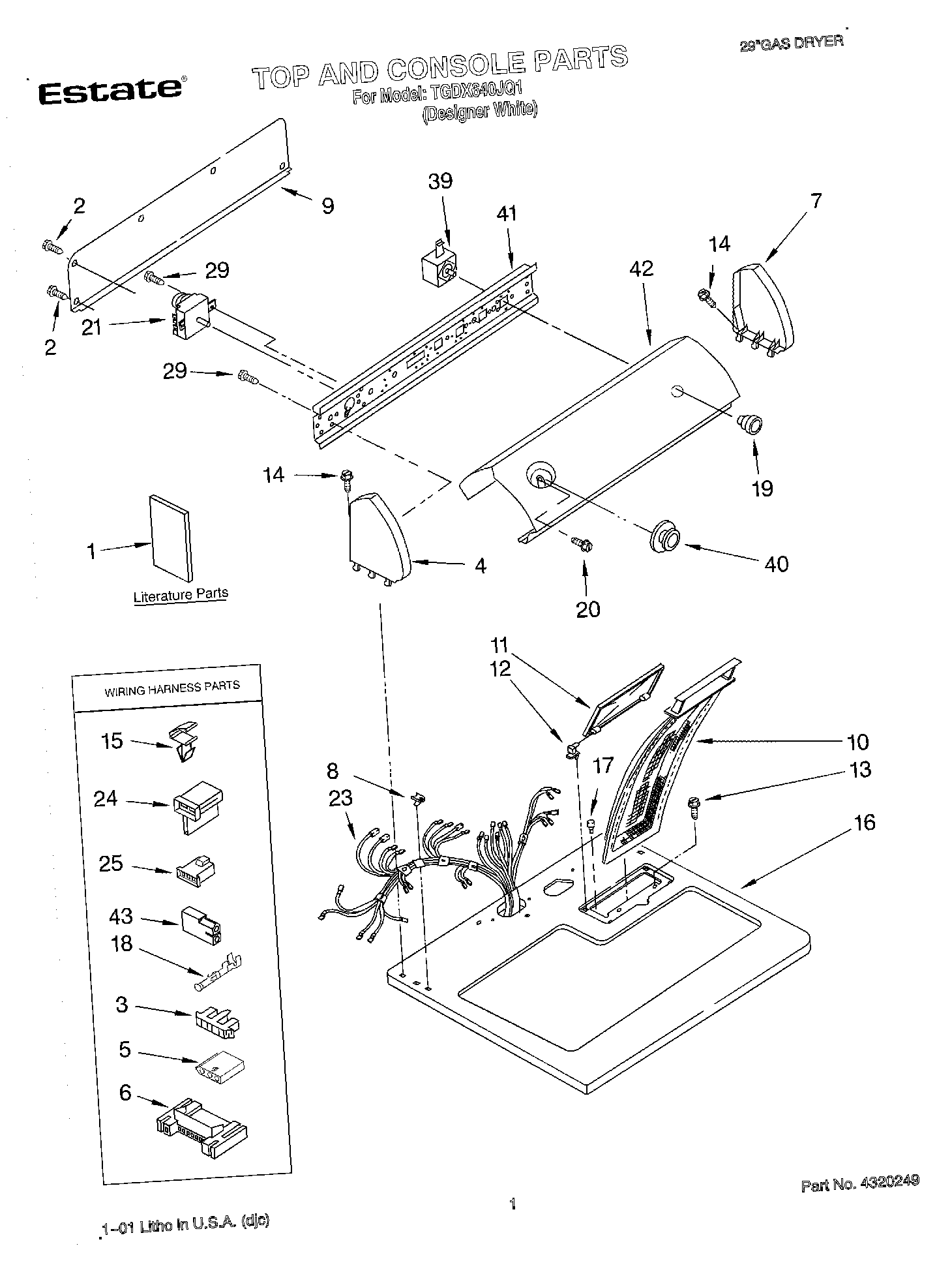

TGDX640JQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
1	Label, Wiring Diagram
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Instructions, Installation)
2	WP693995 Whirlpool Screw
3	Connector, Timer
5	3936144 Whirlpool Connector
6	3395683 Whirlpool Connector
7	279960 Whirlpool Endcap Assembly
8	WP357213 Whirlpool Hinge Stopper
9	W10103406 Whirlpool Rear Panel
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP3394427 Whirlpool Clip
16	Top
17	Bumper, Lint Lid
18	WP94614 Whirlpool Terminal
19	WP3957800 Whirlpool Knob
20	3400859 Whirlpool Screw
21	WP8299764 Whirlpool Timer
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
39	WP3977456 Whirlpool Start Switch
40	WP3957746 Whirlpool Knob Assembly
41	Bracket, Control
42	Panel, Control
43	WP689790 Whirlpool Dryer Rack
43	Receptacle, Latching (2-Way) (Uses Terminal 94614)
43	799344 Whirlpool Refrigerator Paint
43	72017 Whirlpool Appliance Touch-Up Paint White
43	350938 Whirlpool Spray Gun
43	350930 Whirlpool White Spray Paint
