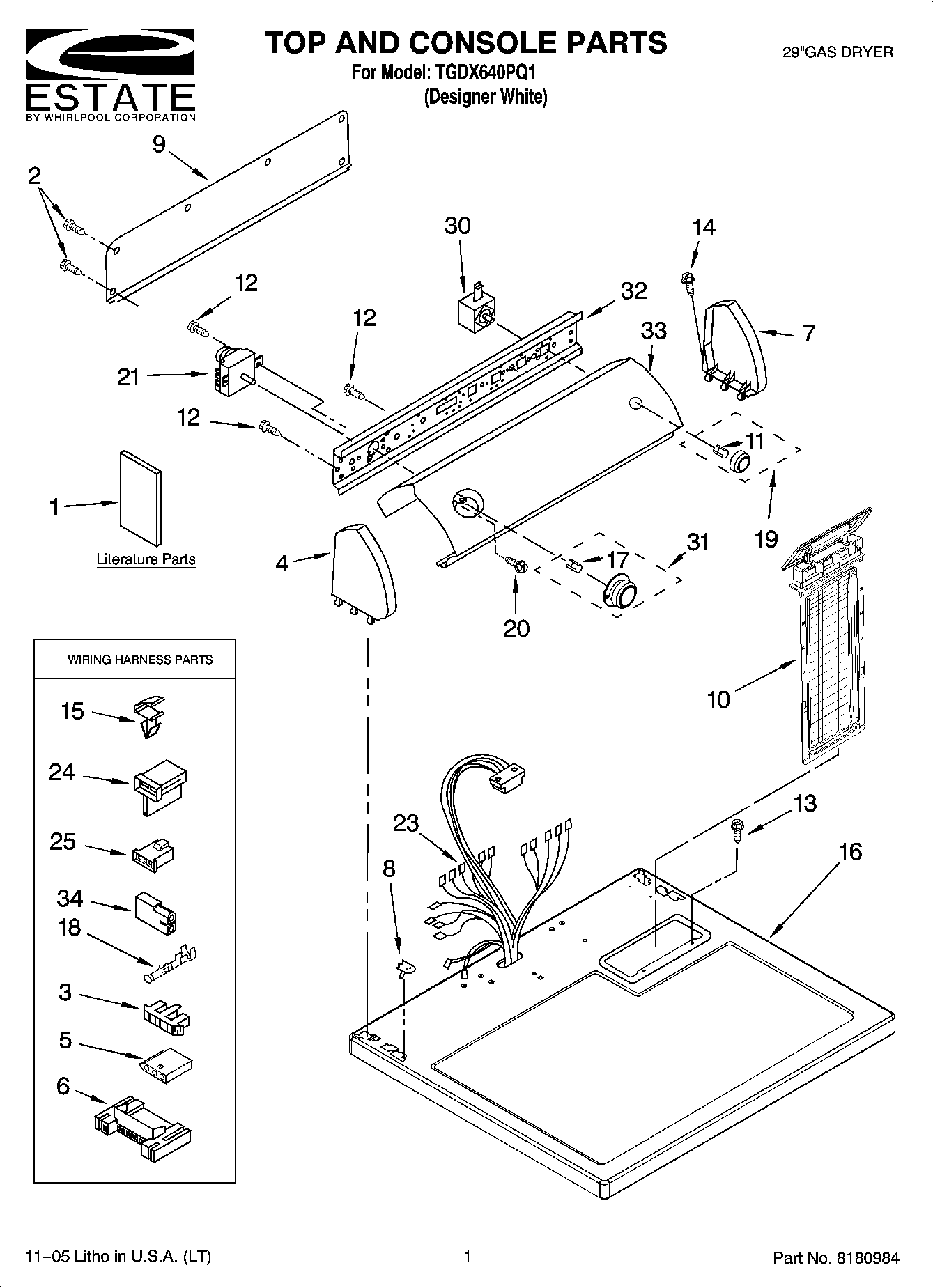

TGDX640PQ1 01 – TOP AND CONSOLE PARTS

TGDX640PQ1 01 – TOP AND CONSOLE PARTS

Written by

in

TGDX640PQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
1Installation Instructions
1Use & Care Guide
1Sheet, Cycle Feature
1Wiring Diagram
1Following May Be Purchased
2WP693995 Whirlpool Screw
3Connector, Timer
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7279960 Whirlpool Endcap Assembly
8WP357213 Whirlpool Hinge Stopper
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top
17WP688805 Whirlpool Spring Clip
18WP94614 Whirlpool Terminal
198557462 Whirlpool Knob
203400859 Whirlpool Screw
21WP8299764 Whirlpool Timer
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
30WP3977456 Whirlpool Start Switch
31Timer Knob Assembly
32Bracket, Control
33Panel, Control
34Receptacle, Latching (2-Way) (Uses Terminal 94614)
