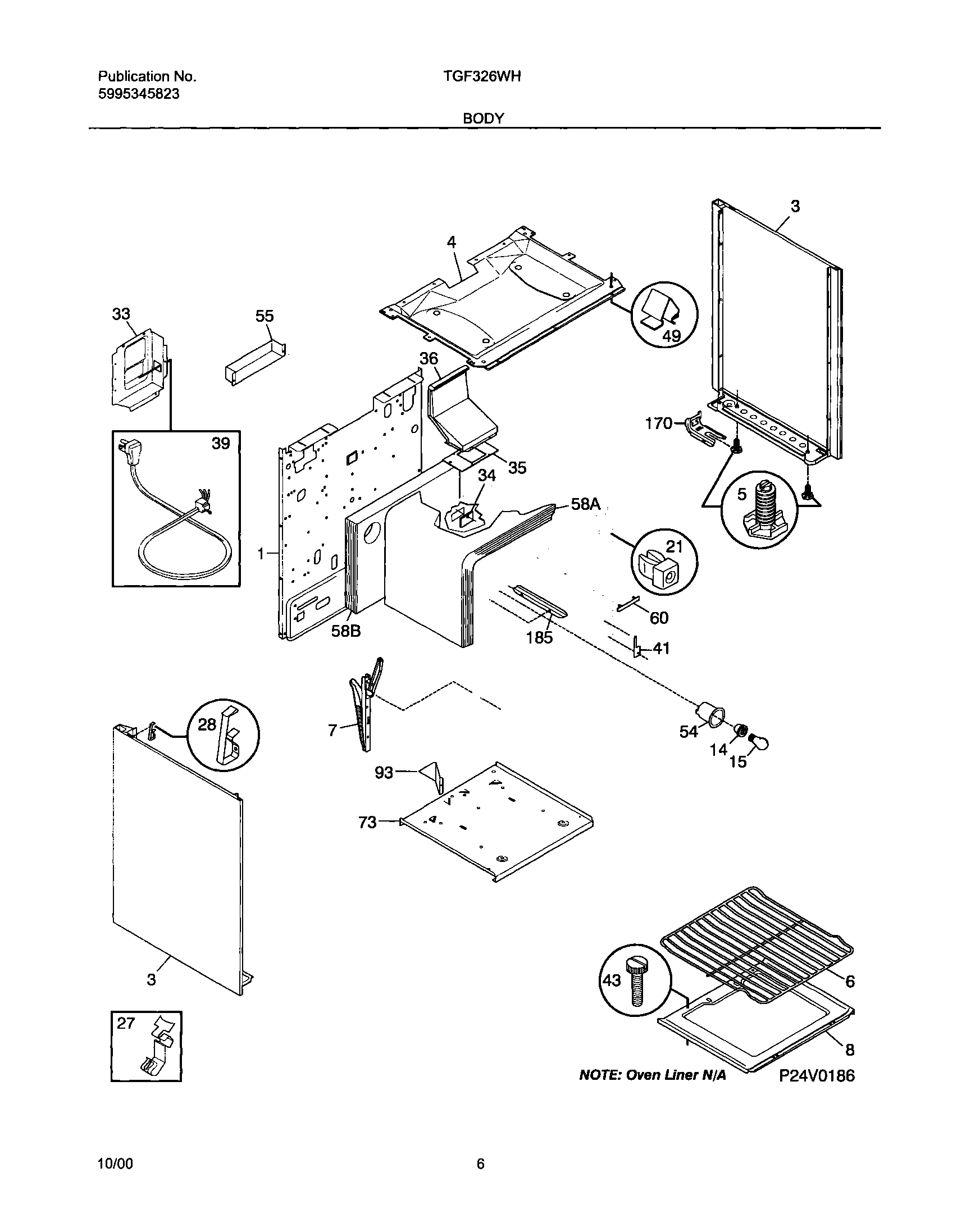

TGF326WHTE 07 – BODY

TGF326WHTE 07 – BODY

Written by

in

TGF326WHTE 07 – BODY

Products

PositionProduct
NIWCI 316001226
NI316021105 Frigidaire Oven Screw
NI316064600 Frigidaire Oven Support
NIScrew,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029416
3WCI 316081036
3WCI 316081037
4WCI 316011918
5WCI 316129200
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8PANEL-OVEN BOTTOM
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30WCI 316059200
30AWCI 316059201
33WCI 316055600
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54WCI 5303271606
55WCI 5303289358
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
73WCI 316109902
93WCI 316110000
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316112500 Frigidaire Oven Template
185316112900 Frigidaire SHIELD
