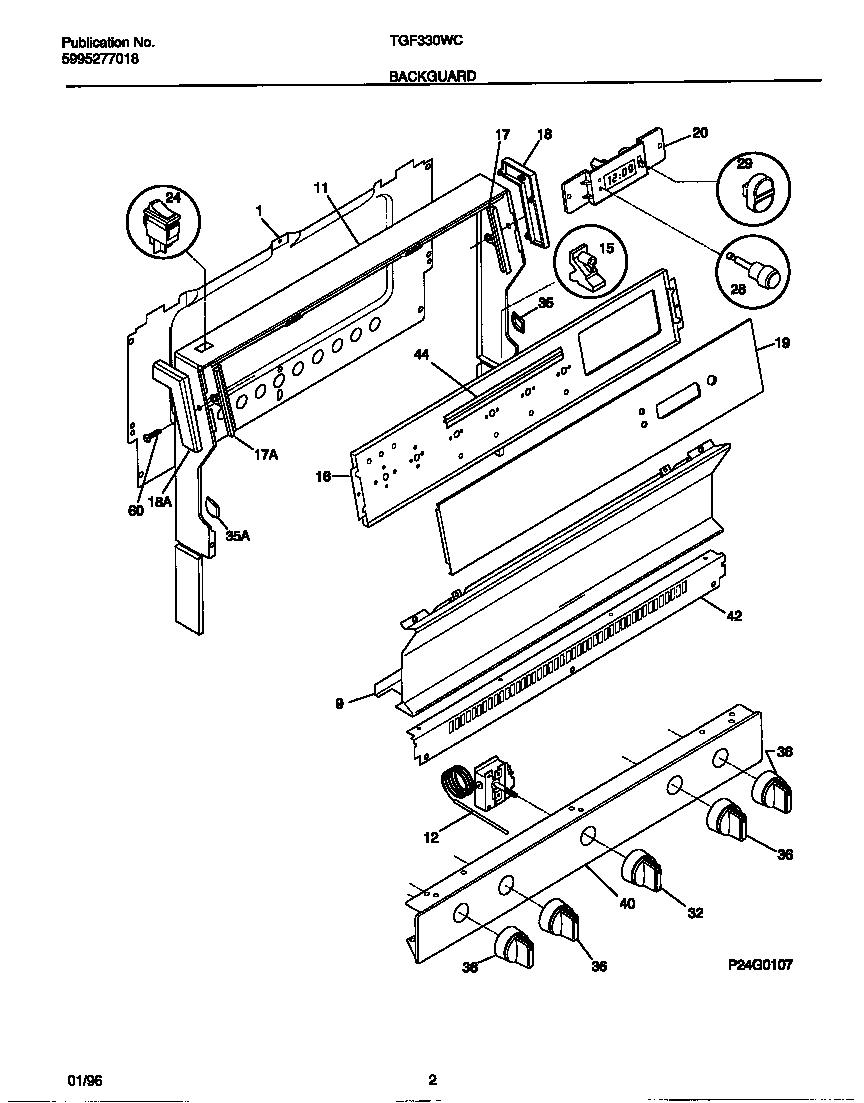

TGF330WCWB 02 – BACKGUARD

TGF330WCWB 02 – BACKGUARD

Written by

in

TGF330WCWB 02 – BACKGUARD

Products

PositionProduct
*85760316021105 Frigidaire Oven Screw
*85761WCI 5303281584
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043501
11WCI 3204755
12316032411 Frigidaire Stove Temperature Control Thermostat
15SUPPORT-BACKGUARD,(2)
16WCI 316042601
17TRIM-GLASS RETAINER,RH
17TRIM-GLASS RETAINER,LH
18WCI 5303272307
18WCI 5303272308
19WCI 316034554
20WCI 5303272309
245304527841 Frigidaire Oven Rocker Switch (Black)
28BUTTON-CLOCK
29KNOB-TIMER BUTTON
32WCI 316022915
35CAP-LH
35CAP-RH
36WCI 316023023
40WCI 316086807
42WCI 316084300
44WCI 3131468
60WCI 5303289970
