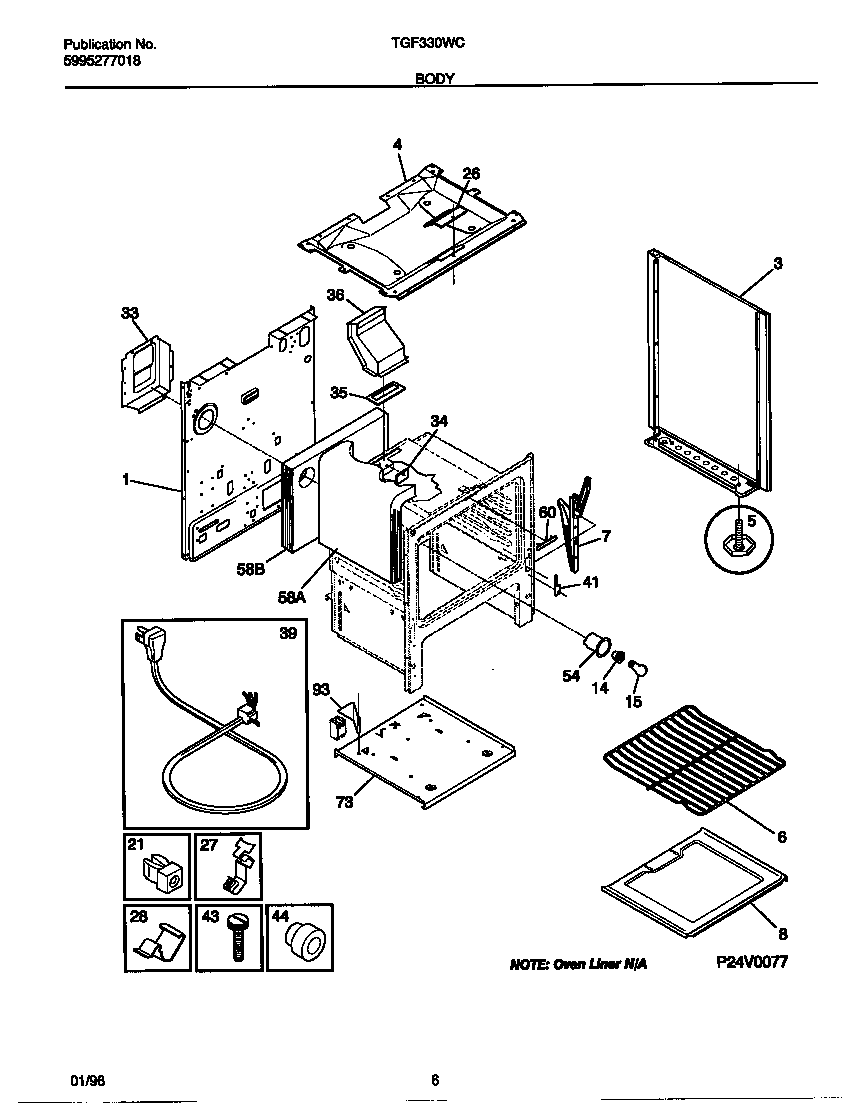

TGF330WCWB 04 – BODY

TGF330WCWB 04 – BODY

Written by

in

TGF330WCWB 04 – BODY

Products

PositionProduct
*85764WCI 316001219
*85763WCI 5303281584
*85762WCI 5303280614
1WCI 316029410
3WCI 316081005
3WCI 316081004
4WCI 3011597
5BWCI 3934058
5C316116000 Frigidaire Screw
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7AHinge,oven door ,(2)
7B3203010 Frigidaire Clip
8B316064600 Frigidaire Oven Support
8ABTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
39A5304515659 Frigidaire Oven Power Cord
39BWCI 08067961
41WCI 3131570
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
54WCI 5303271606
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
