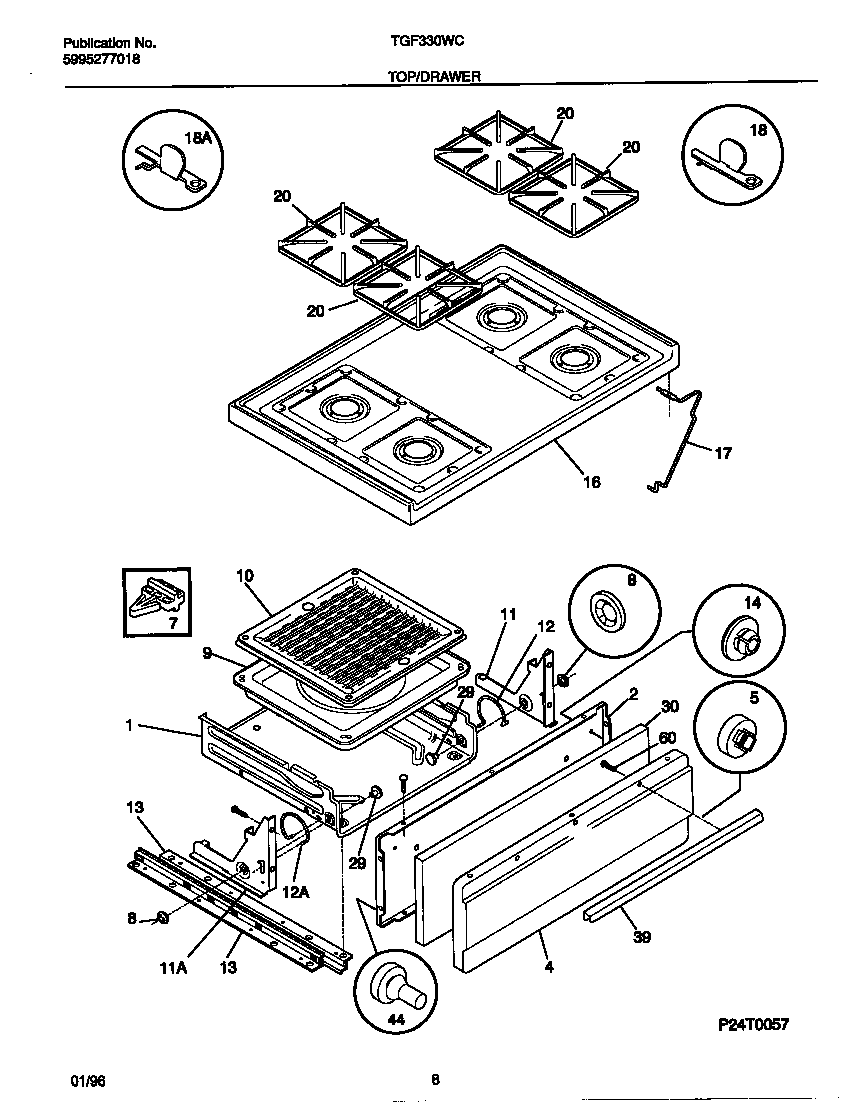

TGF330WCWB 05 – TOP/DRAWER

TGF330WCWB 05 – TOP/DRAWER

Written by

in

TGF330WCWB 05 – TOP/DRAWER

Products

PositionProduct
*85766131243700 Frigidaire Screw
*85765WCI 5303281584
1DRAWER-BROILER
2WCI 3202803
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, LH
11BRACKET-BROILER HINGE, RH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 3131351
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20WCI 316085201
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316019505
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
