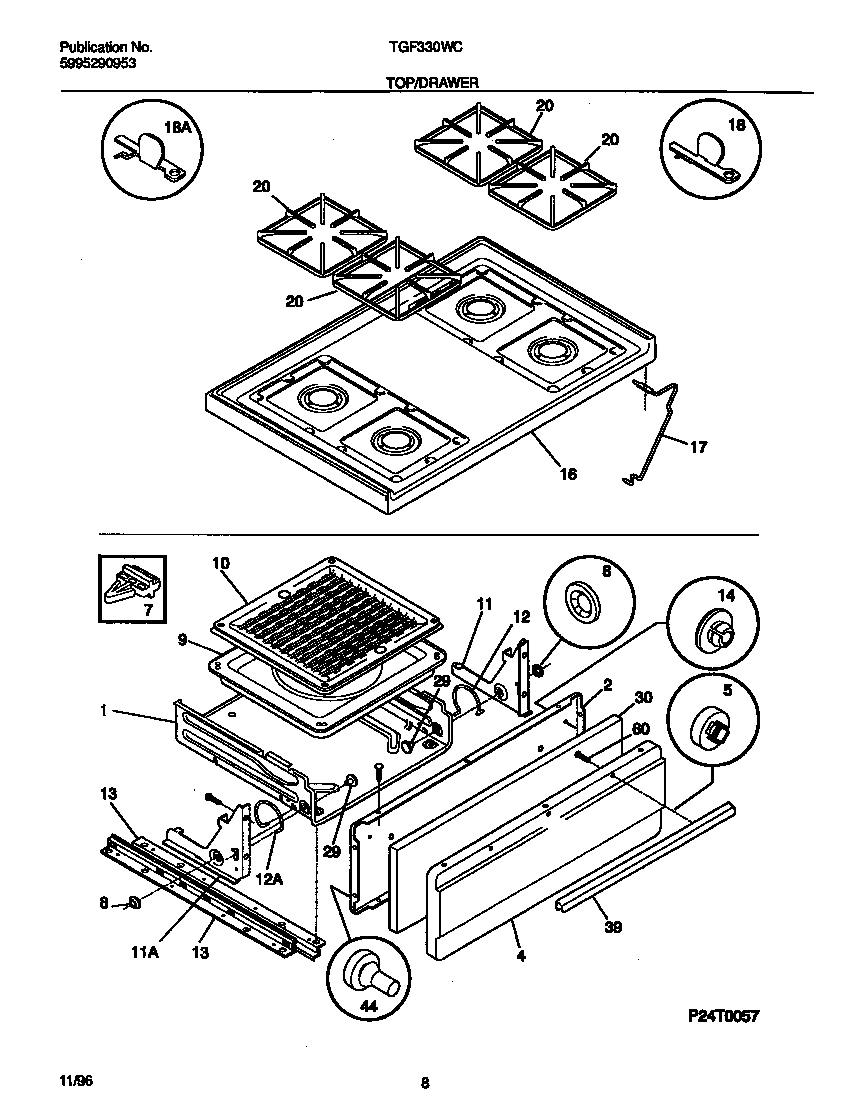

TGF330WCWD 05 – TOP/DRAWER

TGF330WCWD 05 – TOP/DRAWER

Written by

in

TGF330WCWD 05 – TOP/DRAWER

Products

PositionProduct
*53327WCI 5303280311
*53326Screw,cup pt ,8-18 x 0.375 ,chrome
*53328131243700 Frigidaire Screw
1DRAWER-BROILER
2WCI 3202803
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, LH
11BRACKET-BROILER HINGE, RH
12SPRING-BROILER, RH
12WCI 3018618`
13WCI 3131153
14WCI 3206216
16WCI 3131351
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20WCI 316085201
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316019505
443131903 Frigidaire Door/Drawer Bumper
60316089500 Frigidaire Oven Screw
