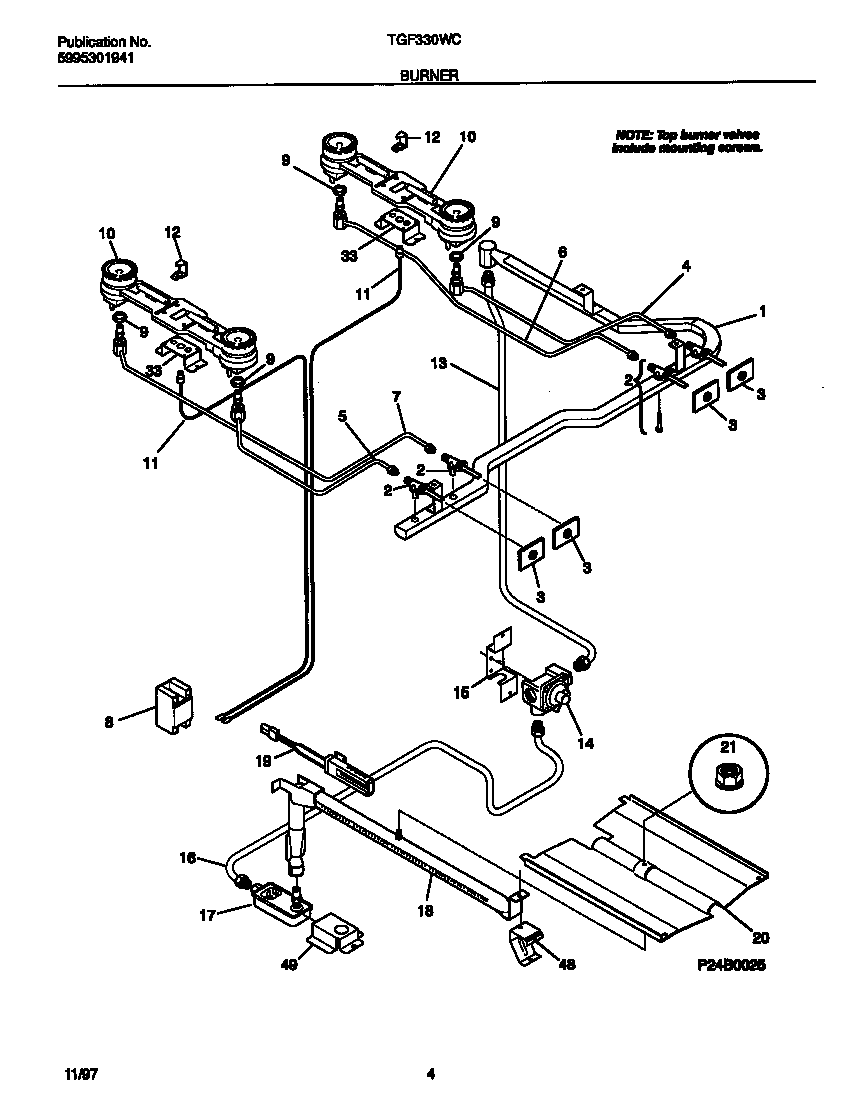

TGF330WCWE 03 – BURNER

TGF330WCWE 03 – BURNER

Written by

in

TGF330WCWE 03 – BURNER

Products

PositionProduct
1WCI 316066201
2AWCI 316098703
2B316048200 Frigidaire Oven Screw
3WCI 316103601
4WCI 316051400
5WCI 316051401
6WCI 316051402
7WCI 316051403
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9NUT, SPECIAL
10WCI 316057100
11AWCI 316081700
11BWCI 316081701
123016993 Frigidaire Oven Retainer
13WCI 316065005
14B316021104 Frigidaire Oven Screw Assembly
14A5304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
17B316089500 Frigidaire Oven Screw
17A3203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
33BRACKET BURNER MTG
48WCI 3018603
49BRKT.-VALVE
