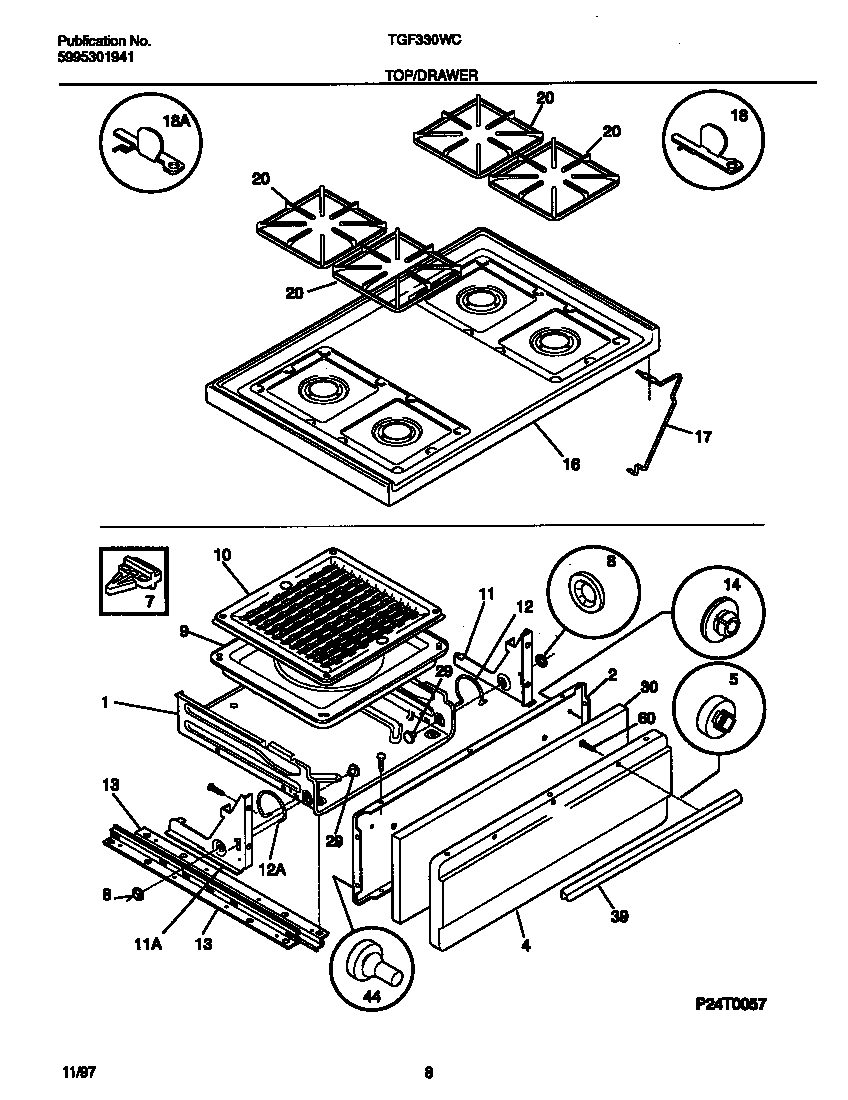

TGF330WCWE 05 – TOP/DRAWER

TGF330WCWE 05 – TOP/DRAWER

Products

PositionProduct
*45965316021105 Frigidaire Oven Screw
*45966Screw,cup pt ,8-18 x 0.375 ,chrome
*45967WCI 5303280311
*45968131243700 Frigidaire Screw
1DRAWER-BROILER
2WCI 3202803
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, LH
11BRACKET-BROILER HINGE, RH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 3131351
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20WCI 316085201
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316019505
443131903 Frigidaire Door/Drawer Bumper
60316089500 Frigidaire Oven Screw
