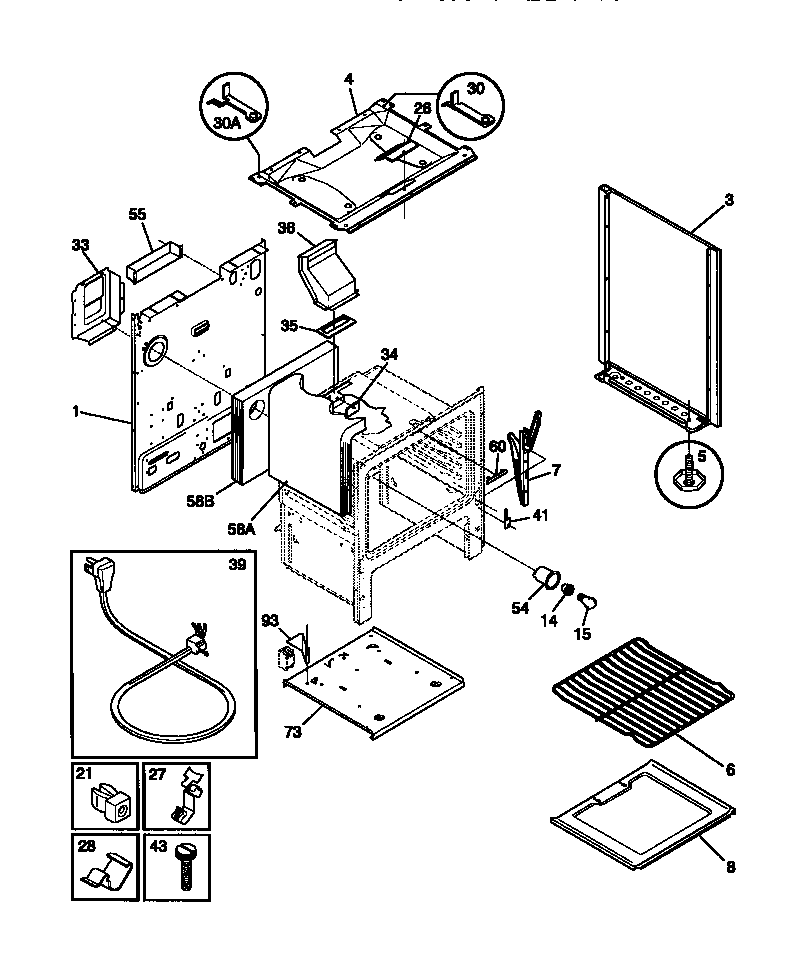

TGF332BCWA 04 – BODY

TGF332BCWA 04 – BODY

Written by

in

TGF332BCWA 04 – BODY

Products

PositionProduct
*83722WCI 316001219
*83721WCI 5303281584
1WCI 316029410
3WCI 316081004
3AWCI 316081005
4WCI 3011597
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B316116000 Frigidaire Screw
5AWCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
7A3203010 Frigidaire Clip
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
55WCI 5303273110
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
