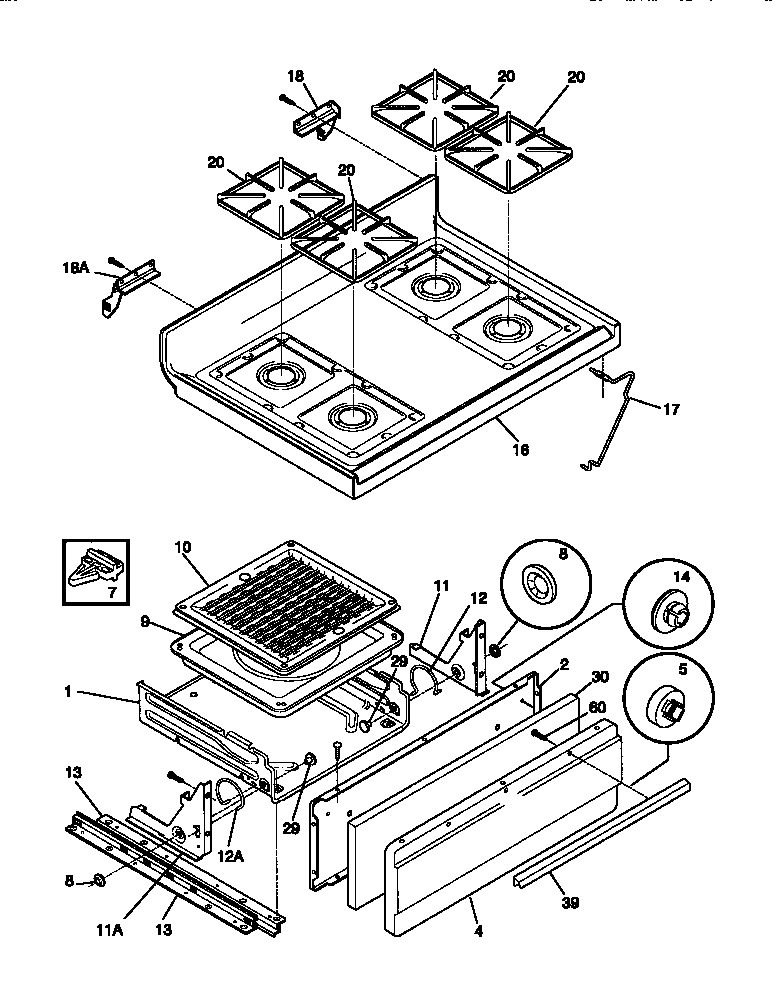

TGF332BCWA 05 – TOP/DRAWER

TGF332BCWA 05 – TOP/DRAWER

Written by

in

TGF332BCWA 05 – TOP/DRAWER

Products

PositionProduct
*83724131243700 Frigidaire Screw
*83723WCI 5303281584
1DRAWER-BROILER
2WCI 3202803
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, RH
11ABRACKET-BROILER HINGE, LH
12AWCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303285552
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
20WCI 316085201
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39HANDLE-DRAWER, WHITE
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
