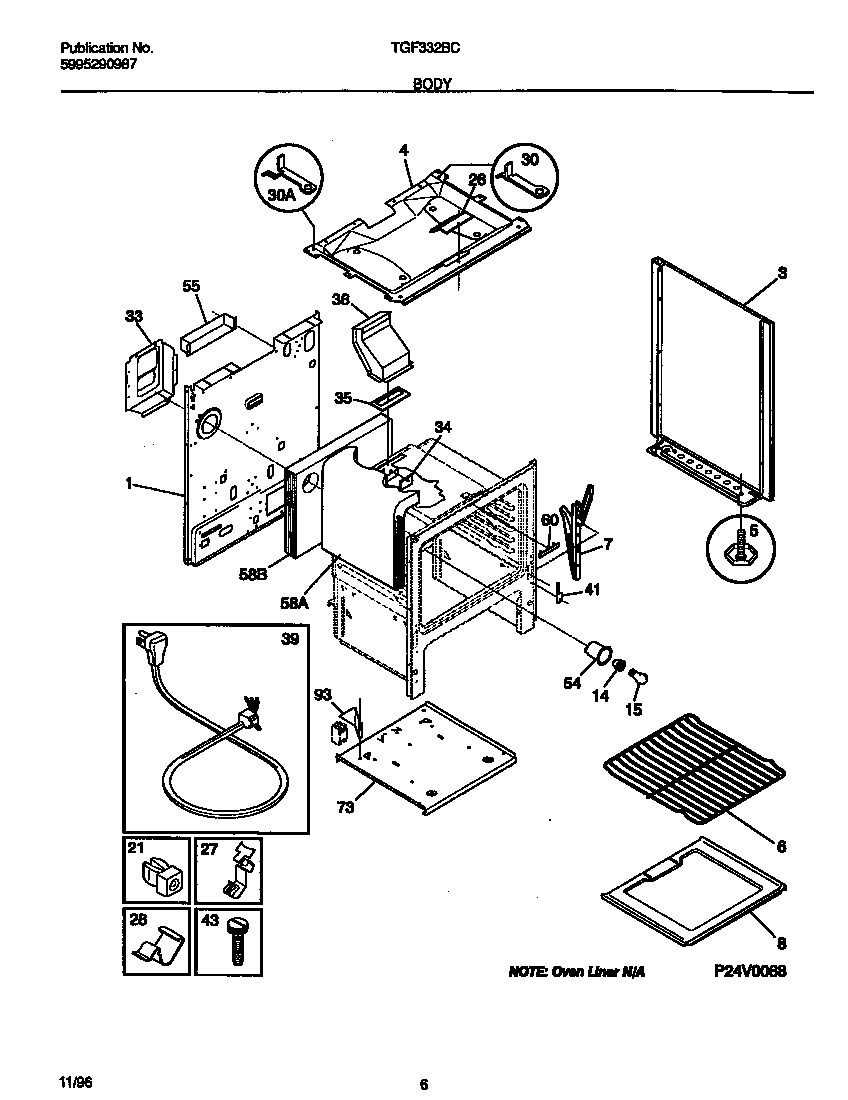

TGF332BCWD 04 – BODY

TGF332BCWD 04 – BODY

Written by

in

TGF332BCWD 04 – BODY

Products

PositionProduct
*59042WCI 316001219
*59041Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
3WCI 316081028
3WCI 316081029
4WCI 3011597
5BWCI 3934058
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5ASCREW-LEVELING
5C316116000 Frigidaire Screw
6316067902 Frigidaire Oven Rack
7B3203010 Frigidaire Clip
7AHinge,oven door ,(2)
8ABTTM-OVEN
8B316064600 Frigidaire Oven Support
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
55WCI 5303273110
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055501
