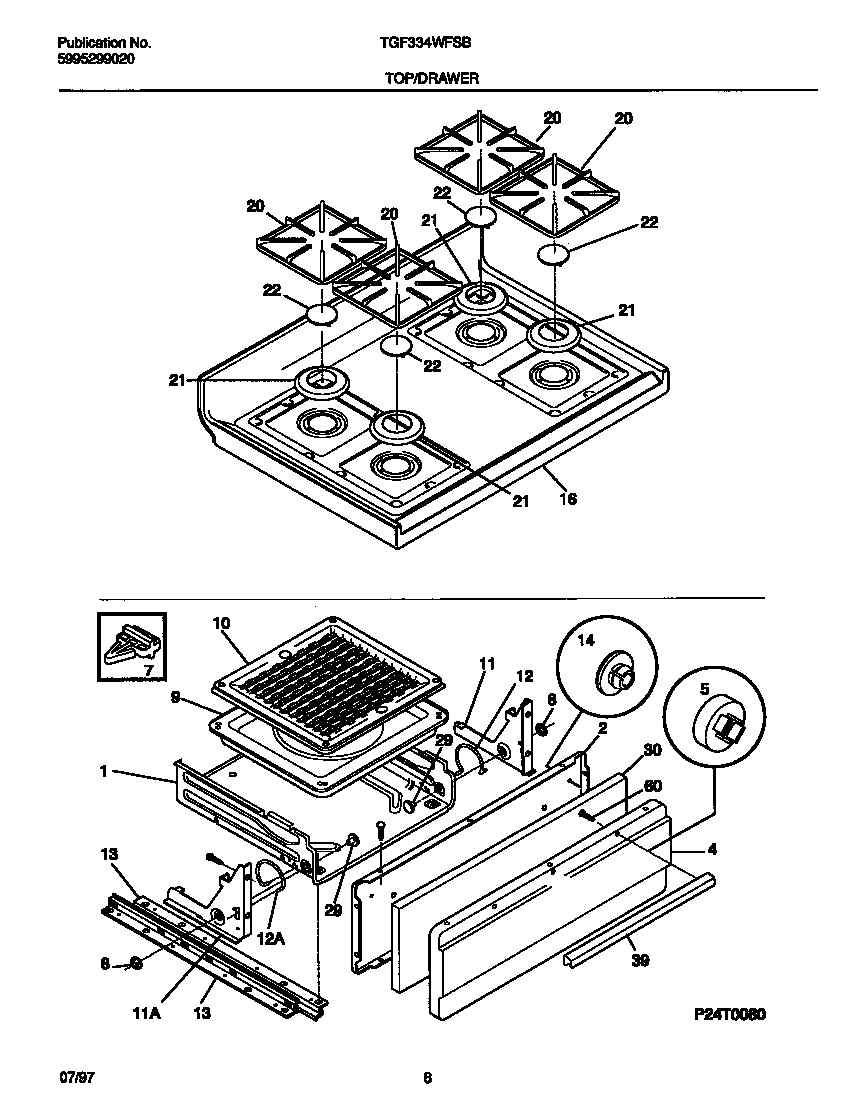

TGF334WFSB 05 – TOP/DRAWER

TGF334WFSB 05 – TOP/DRAWER

Written by

in

TGF334WFSB 05 – TOP/DRAWER

Products

PositionProduct
*55326316021105 Frigidaire Oven Screw
*55323Screw,cup pt ,8-18 x 0.375 ,chrome
*55325131243700 Frigidaire Screw
*55324WCI 5303280311
1DRAWER-BROILER
2WCI 3202803
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, RH
11BRACKET-BROILER HINGE, LH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303301546
20WCI 316085205
21WCI 316011306
22WCI 316010903
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316019505
60316089500 Frigidaire Oven Screw
