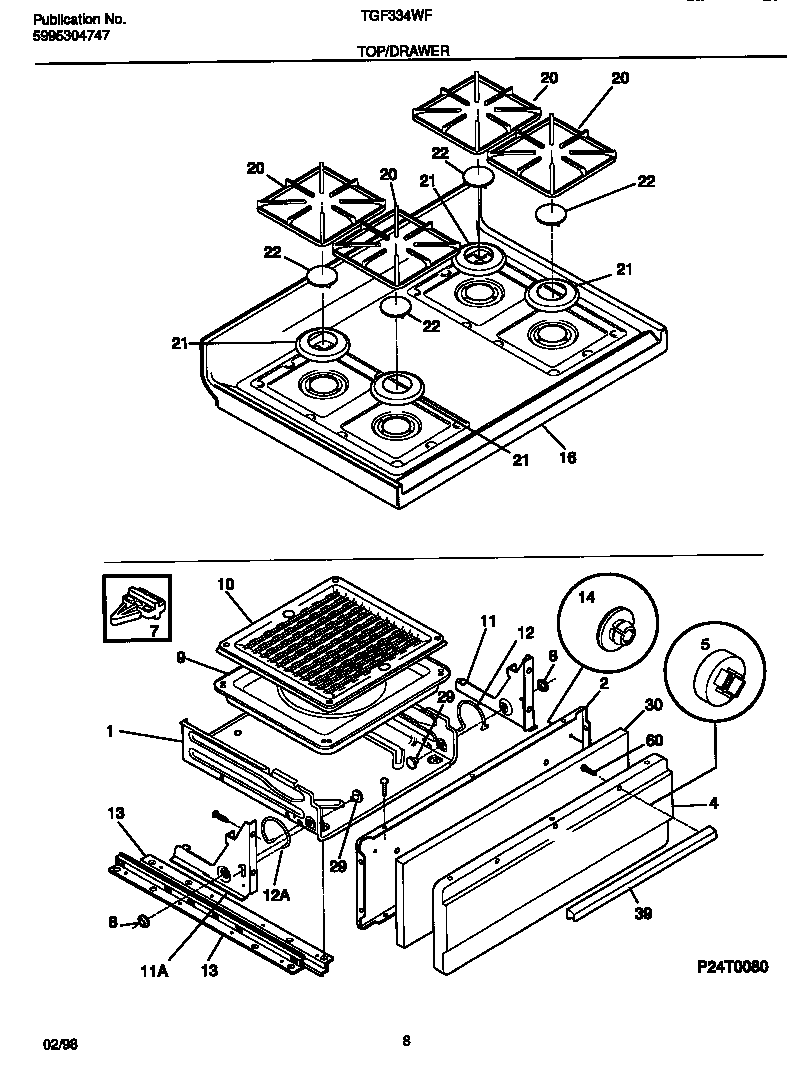

TGF334WFSD 05 – TOP/DRAWER

TGF334WFSD 05 – TOP/DRAWER

Written by

in

TGF334WFSD 05 – TOP/DRAWER

Products

PositionProduct
*50213316021105 Frigidaire Oven Screw
*50216131243700 Frigidaire Screw
*50214Screw,cup pt ,8-18 x 0.375 ,chrome
*50215WCI 5303280311
*50217SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
1DRAWER-BROILER
2WCI 3202803
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, RH
11BRACKET-BROILER HINGE, LH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303301546
20WCI 316085205
21TRIM RING-BURNER
22WCI 316010905
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316019505
60316089500 Frigidaire Oven Screw
