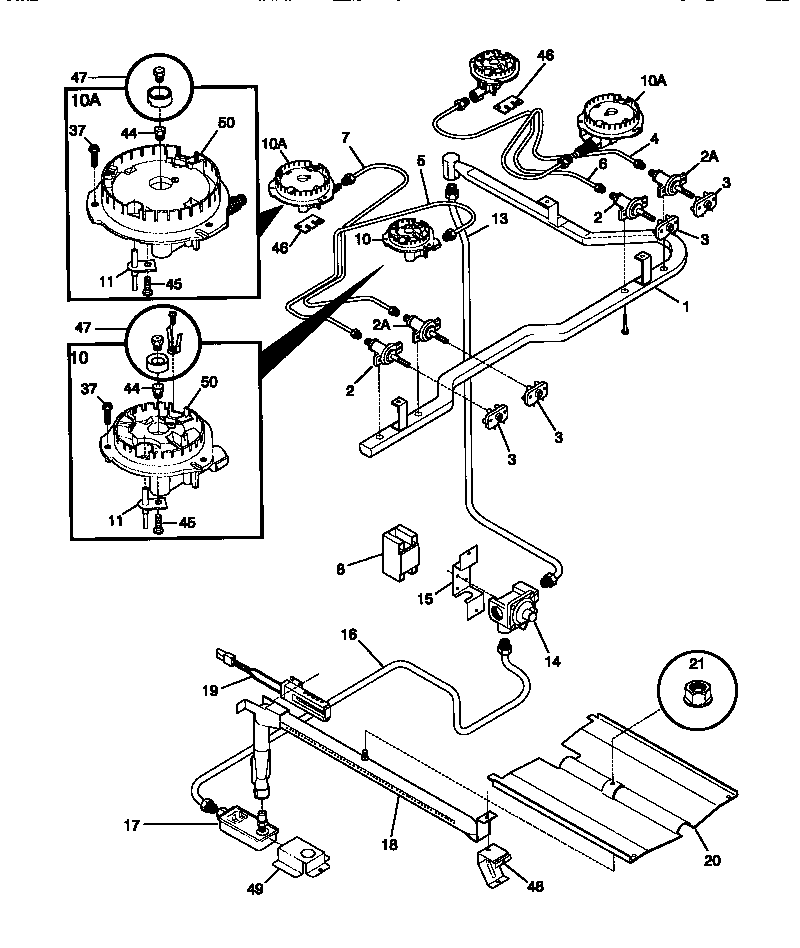

TGF335BCDA 03 – BURNER

TGF335BCDA 03 – BURNER

Written by

in

TGF335BCDA 03 – BURNER

Products

PositionProduct
1WCI 316066201
2VALVE, TOP BURNER, (4), WITH MTG SCREWS
2AWCI 316050602
2B316048200 Frigidaire Oven Screw
3SWITCH-IGNITER, (4)
3ASWITCH HARNESS TERMINAL KIT
4WCI 316059608
5WCI 316059609
6WCI 316059610
7WCI 316059611
8AHARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
85304505695 Frigidaire Oven Module
10ABurner Assy-top,sealed ,large ,11,100 BTU,(2), includes ,11,37,44,45
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 316065005
14A316021104 Frigidaire Oven Screw Assembly
145303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44AWCI 316010804
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
46WCI 316074700
47WCI 5303286386
48WCI 3018603
49BRKT.-VALVE
50WCI 316090201
50ABURNER-TOP, (4), INCLUDES 37
