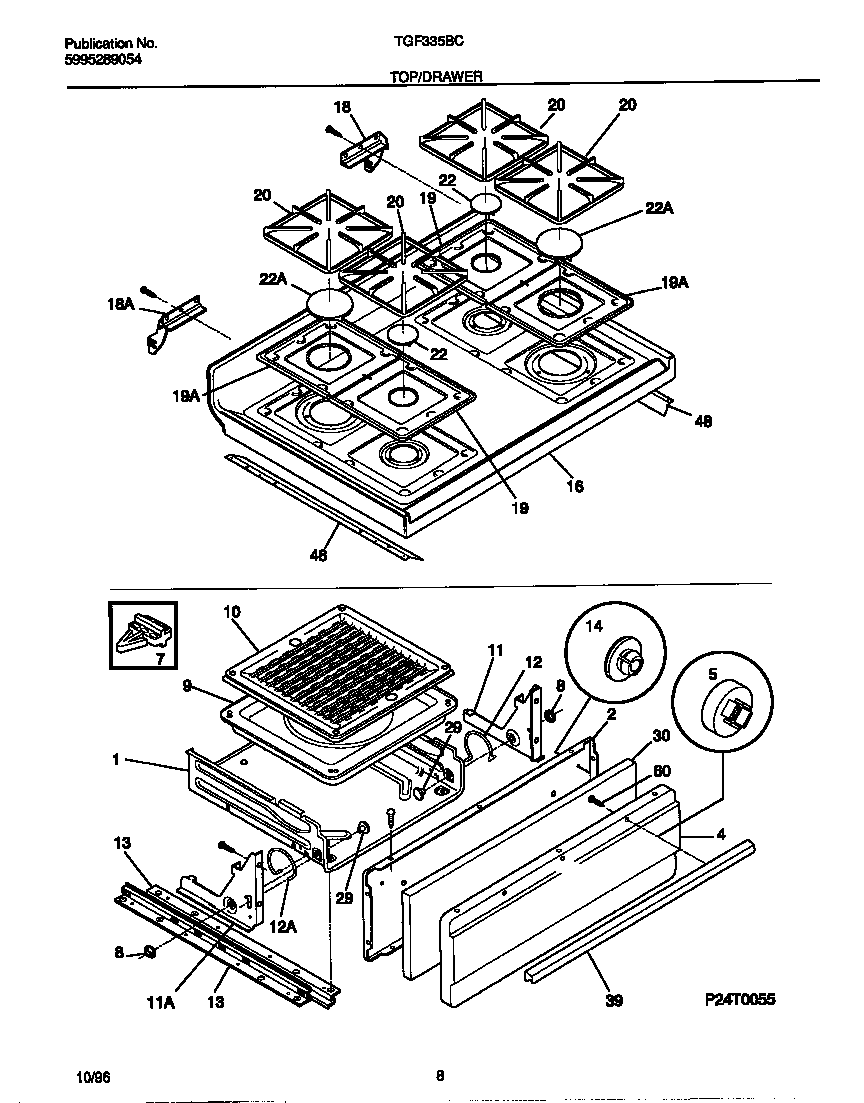

TGF335BCDD 05 – TOP/DRAWER

TGF335BCDD 05 – TOP/DRAWER

Written by

in

TGF335BCDD 05 – TOP/DRAWER

Products

PositionProduct
*44007WCI 5303280311
*44009WCI 5303288574
*44006Screw,cup pt ,8-18 x 0.375 ,chrome
*44008131243700 Frigidaire Screw
1DRAWER-BROILER
2WCI 3202803
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, RH
11BRACKET-BROILER HINGE, LH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303307710
16Shield,deflector ,main top panel ,(2)
19BPan-burner,large ,black
19AWCI 316011415
20WCI 316085201
22CAP-BURNER, MATTE BLACK, SMALL, (2)
22CAP-BURNER, MATTE BLACK, LARGE, (2)
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316019507
48WCI 316077400
49WCI 5303307192
49WCI 5303307193
60316089500 Frigidaire Oven Screw
