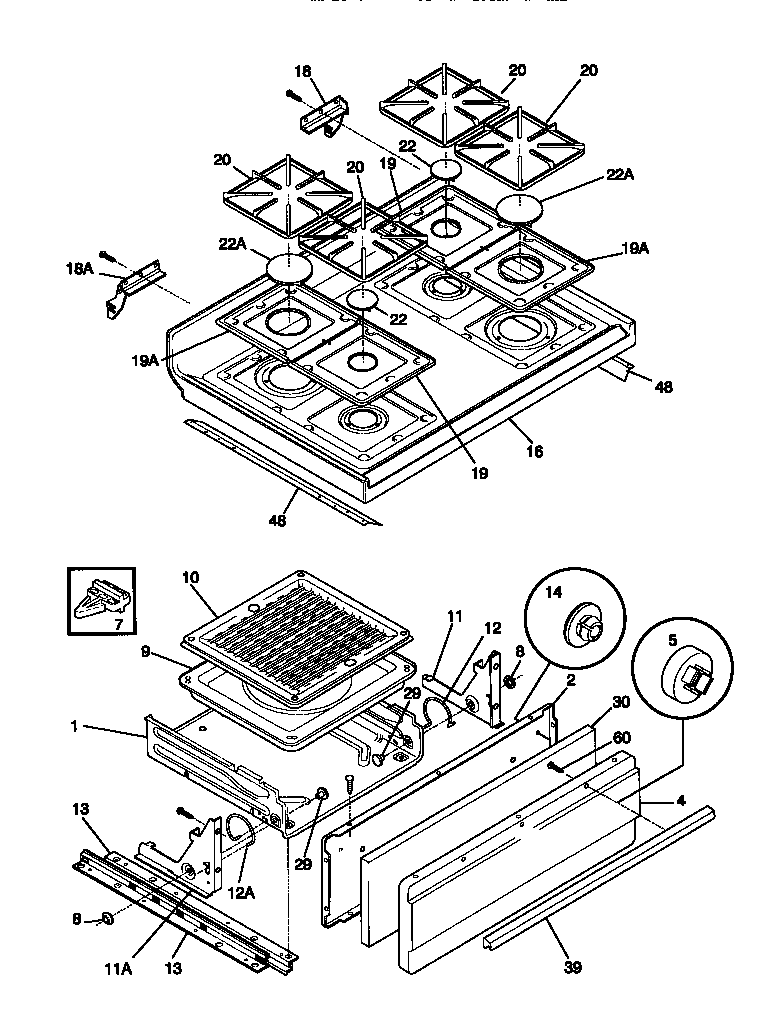

TGF335BCWA 05 – TOP/DRAWER

Products

Position	Product
*61164	WCI 5303281584
*61165	131243700 Frigidaire Screw
*61166	WCI 5303288574
1	DRAWER-BROILER
2	WCI 3202803
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL-BROILER, WHITE
5	FSTNR, SPACER (2)
7	GLIDE-DRAWER, REAR
8	WCI 3131386
9	PAN-BROILER
10	WCI 5303131356
11	BRACKET-BROILER HINGE, RH
11A	BRACKET-BROILER HINGE, LH
12A	WCI 3018618`
12	SPRING-BROILER, RH
13	WCI 3131153
14	WCI 3206216
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16	WCI 5303307709
18A	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
19	WCI 316011415
19A	Pan-burner,large ,black
20	WCI 316085201
22A	CAP-BURNER, MATTE BLACK, LARGE, (2)
22	CAP-BURNER, MATTE BLACK, SMALL, (2)
29	PIN, HINGE (2)
30	INSULATION, BROILER DRAWER
39	HANDLE-DRAWER, WHITE
48	WCI 316077400
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
