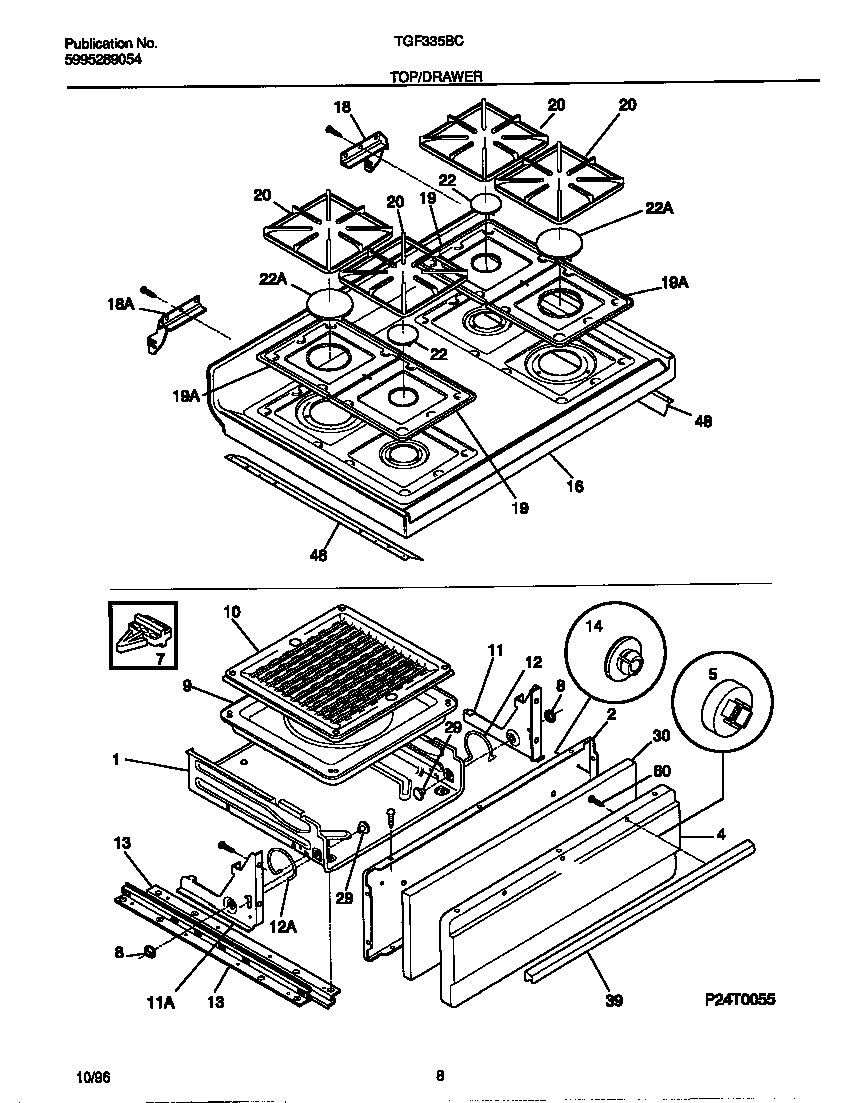

TGF335BCWD 05 – TOP/DRAWER

Products

Position	Product
*44009	WCI 5303288574
*44008	131243700 Frigidaire Screw
*44006	Screw,cup pt ,8-18 x 0.375 ,chrome
*44007	WCI 5303280311
1	DRAWER-BROILER
2	WCI 3202803
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL-BROILER, WHITE
5	FSTNR, SPACER (2)
7	GLIDE-DRAWER, REAR
8	WCI 3131386
9	PAN-BROILER
10	WCI 5303131356
11	BRACKET-BROILER HINGE, RH
11	BRACKET-BROILER HINGE, LH
12	WCI 3018618`
12	SPRING-BROILER, RH
13	WCI 3131153
14	WCI 3206216
16	WCI 5303307709
16	Shield,deflector ,main top panel ,(2)
19A	WCI 316011415
19B	Pan-burner,large ,black
20	WCI 316085201
22	CAP-BURNER, MATTE BLACK, LARGE, (2)
22	CAP-BURNER, MATTE BLACK, SMALL, (2)
29	PIN, HINGE (2)
30	INSULATION, BROILER DRAWER
39	WCI 316019506
48	WCI 316077400
49	WCI 5303307193
49	WCI 5303307192
60	316089500 Frigidaire Oven Screw
