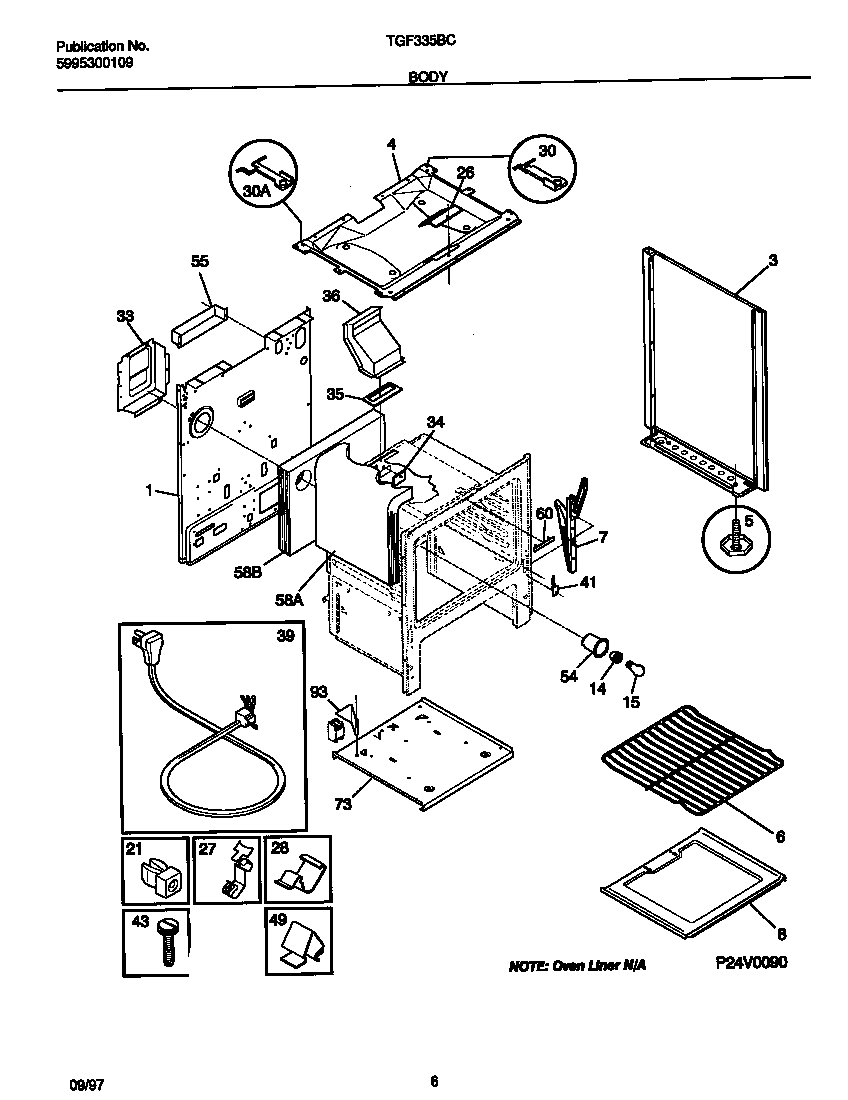

TGF335BCWE 04 – BODY

TGF335BCWE 04 – BODY

Written by

in

TGF335BCWE 04 – BODY

Products

PositionProduct
*34806WCI 316001204
*34805WCI 5303281584
*34804Screw,cup pt ,8-18 x 0.375 ,chrome
*34803WCI 08067961
1WCI 316029412
3WCI 316081028
3WCI 316081029
4WCI 316011912
5C316116000 Frigidaire Screw
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5BWCI 3934058
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7B3203010 Frigidaire Clip
7AHinge,oven door ,(2)
8B316064600 Frigidaire Oven Support
8ABTTM-OVEN
10WCI 5303131356
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30WCI 316059201
30WCI 316059200
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54WCI 5303271606
55WCI 5303289358
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73BASE-BROIL
93WCI 316055500
