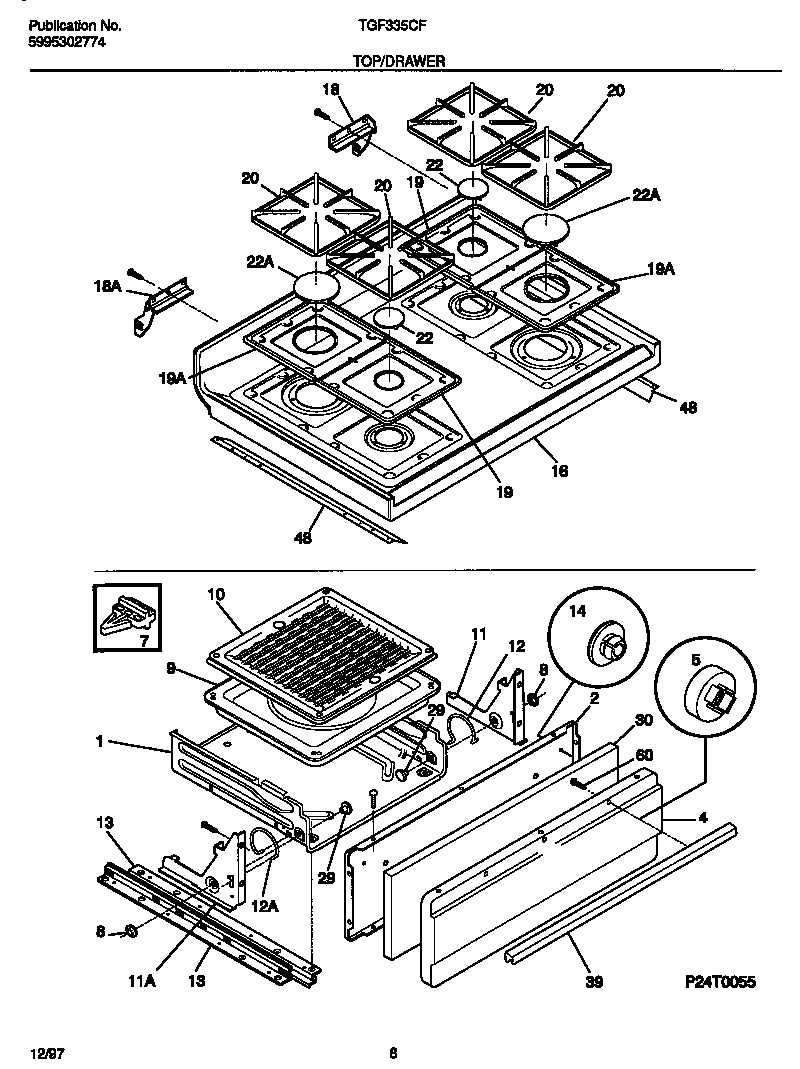

TGF335CFSA 05 – TOP/DRAWER

TGF335CFSA 05 – TOP/DRAWER

Written by

in

TGF335CFSA 05 – TOP/DRAWER

Products

PositionProduct
*90647WCI 5303280311
*90646Screw,cup pt ,8-18 x 0.375 ,chrome
*90648WCI 5303281584
*90645316021105 Frigidaire Oven Screw
*90649131243700 Frigidaire Screw
1DRAWER-BROILER
2WCI 3202803
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, RH
11BRACKET-BROILER HINGE, LH
12WCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 5303307709
19WCI 316011413
19Pan-burner,large ,gray
20WCI 316085205
22CAP-BURNER, GRAY, LARGE, (1)
22CAP-BURNER, DARK GRAY, (4)
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39WCI 316019506
48Shield,deflector ,main top panel ,(2)
60316089500 Frigidaire Oven Screw
