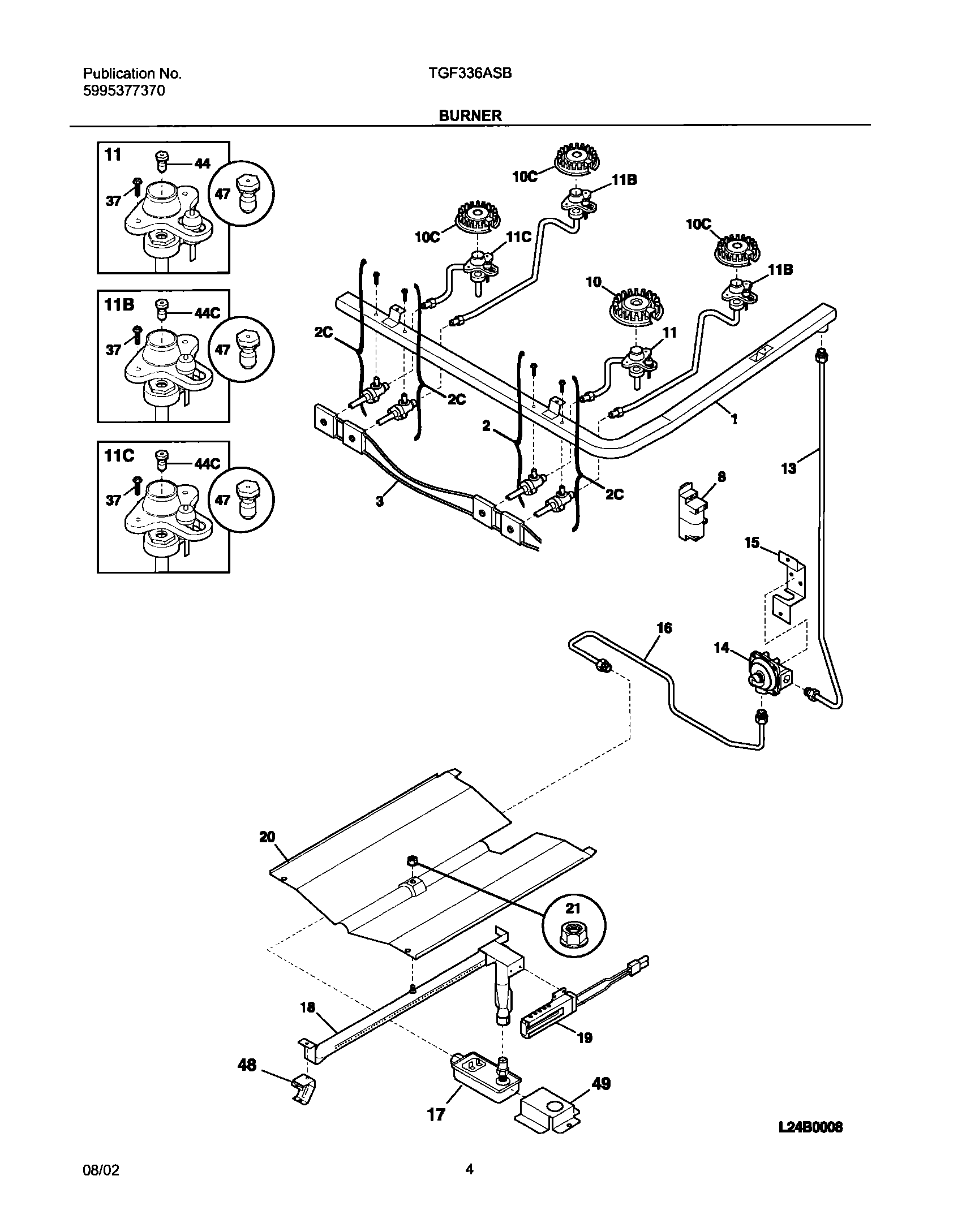

TGF336ASB 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	5303271648 Frigidaire Oven Screw
NI	WIRING HARNESS,IGNITOR MODU
NI	316248105 Frigidaire Instructions /Lp Conversion Kit Ns
NI	316134300 Frigidaire Oven Screw
1	WCI 316204000
2	WCI 5303935210
2C	WCI 5303935213
3	IGNITOR SWITCH WIRE HARNESS
8	5304505695 Frigidaire Oven Module
10C	316212400 Frigidaire Oven Primary Burner
10	WCI 316212300
11C	316237805 Frigidaire Orifice Assembly Igniter
11B	316237704 Frigidaire Igniter/Orifice Assembly
11	316237801 Frigidaire Range Igniter Orifice Assembly
13	WCI 316207000
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	316114300 Frigidaire Oven Burner
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	WCI 3203265
21	5303013272 Frigidaire Oven Nut
37	316240600 Frigidaire Igniter Mounting Screw
44C	316237902 Frigidaire Orifice Top Burner
44	316237901 Frigidaire Oven Orifice
47	GRLP3 Frigidaire Oven LP Conversion Kit
48	WCI 3018603
49	BRKT.-VALVE
