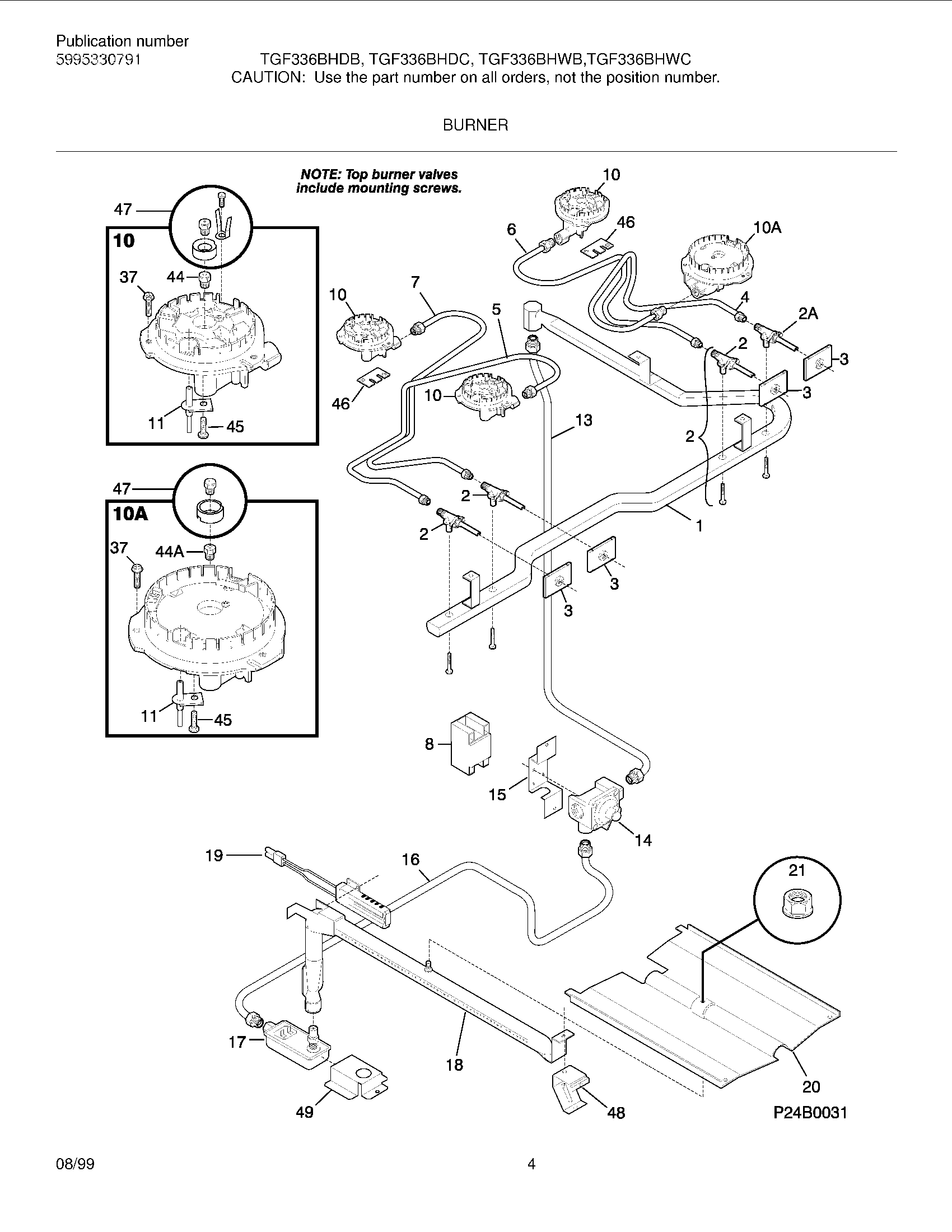

TGF336BHDB 05 – BURNER

TGF336BHDB 05 – BURNER

Written by

in

TGF336BHDB 05 – BURNER

Products

PositionProduct
NI5303271648 Frigidaire Oven Screw
1WCI 316113801
2AWCI 316127502
2316048200 Frigidaire Oven Screw
2WCI 316127500
3SWITCH-IGNITOR
4WCI 316059612
5316059613 Frigidaire Oven Tube-LF
6WCI 316059614
7316059615 Frigidaire Oven Tube
8HARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
85304505695 Frigidaire Oven Module
10ABurner Assy-top,sealed ,large ,11,100 BTU,(2), includes ,11,37,44,45
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 316065005
14316021104 Frigidaire Oven Screw Assembly
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18316114300 Frigidaire Oven Burner
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44AWCI 316010804
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
46WCI 316074700
47WCI 80880910
48WCI 3018603
49BRKT.-VALVE
