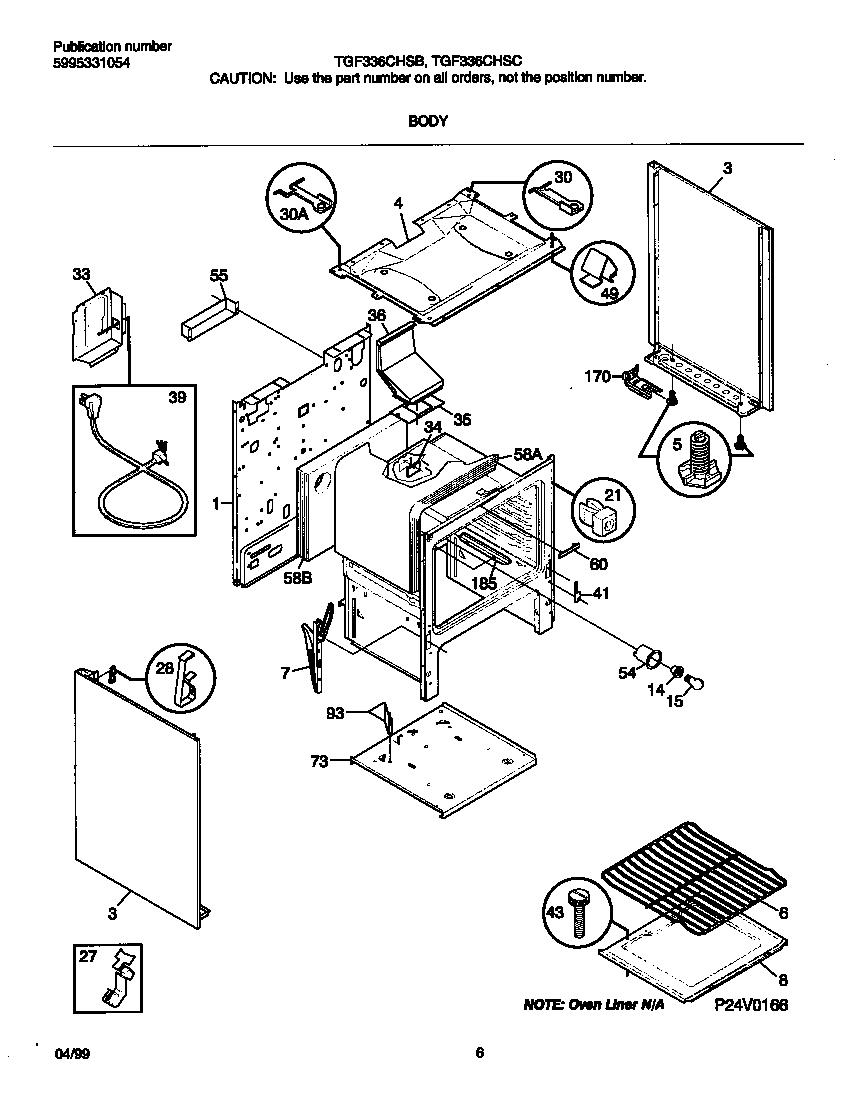

TGF336CHSB 04 – BODY

TGF336CHSB 04 – BODY

Written by

in

TGF336CHSB 04 – BODY

Products

PositionProduct
*25734WCI 316001226
*25735316021105 Frigidaire Oven Screw
*25739316064600 Frigidaire Oven Support
*25736Screw,cup pt ,8-18 x 0.375 ,chrome
*25738WCI 316081035
1WCI 316029412
3WCI 316081034
4WCI 316011914
5WCI 316107300
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
9WCI 316073800
10WCI 3205234
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
30WCI 316059201
30WCI 316059200
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 5303273108
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
493205821 Frigidaire Clip
54WCI 5303271606
55WCI 5303289358
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73WCI 316109902
93WCI 316110000
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170B316116000 Frigidaire Screw
185316112900 Frigidaire SHIELD
