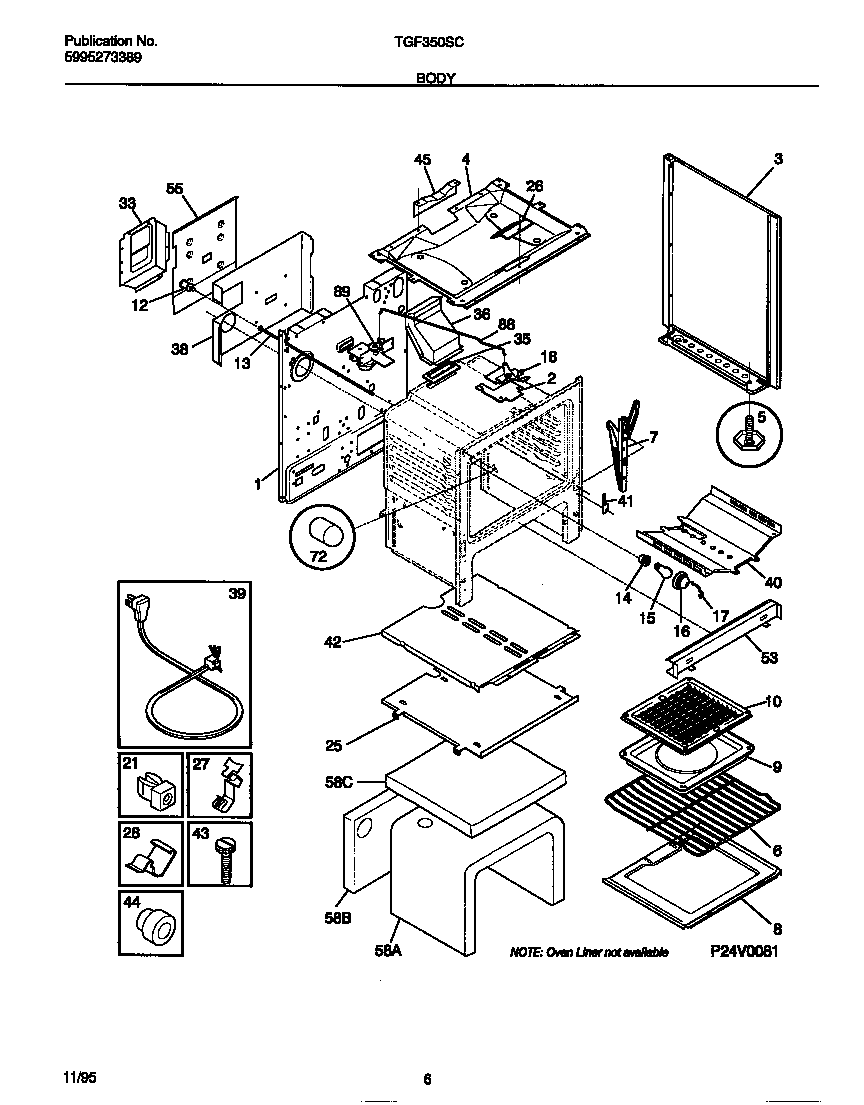

TGF350SCWA 04 – BODY

Products

PositionProduct
*07765ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
*07766WCI 316056500
*07767WCI 5303281584
*07768WCI 316001630
1WCI 316029410
2SHIELD-OVN TOP
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 316081004
3WCI 316081005
3WCI 08067992
4WCI 3011597
5WCI 3934058
5316116000 Frigidaire Screw
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
73203010 Frigidaire Clip
7Hinge,oven door ,(2)
8316064600 Frigidaire Oven Support
8BTTM-OVEN
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316051701
39WCI 08067961
395304515659 Frigidaire Oven Power Cord
40SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
53SHIELD-FRONT
5308067973 Frigidaire 0 Insulation
55WCI 316052601
58WCI 316054200
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028100
