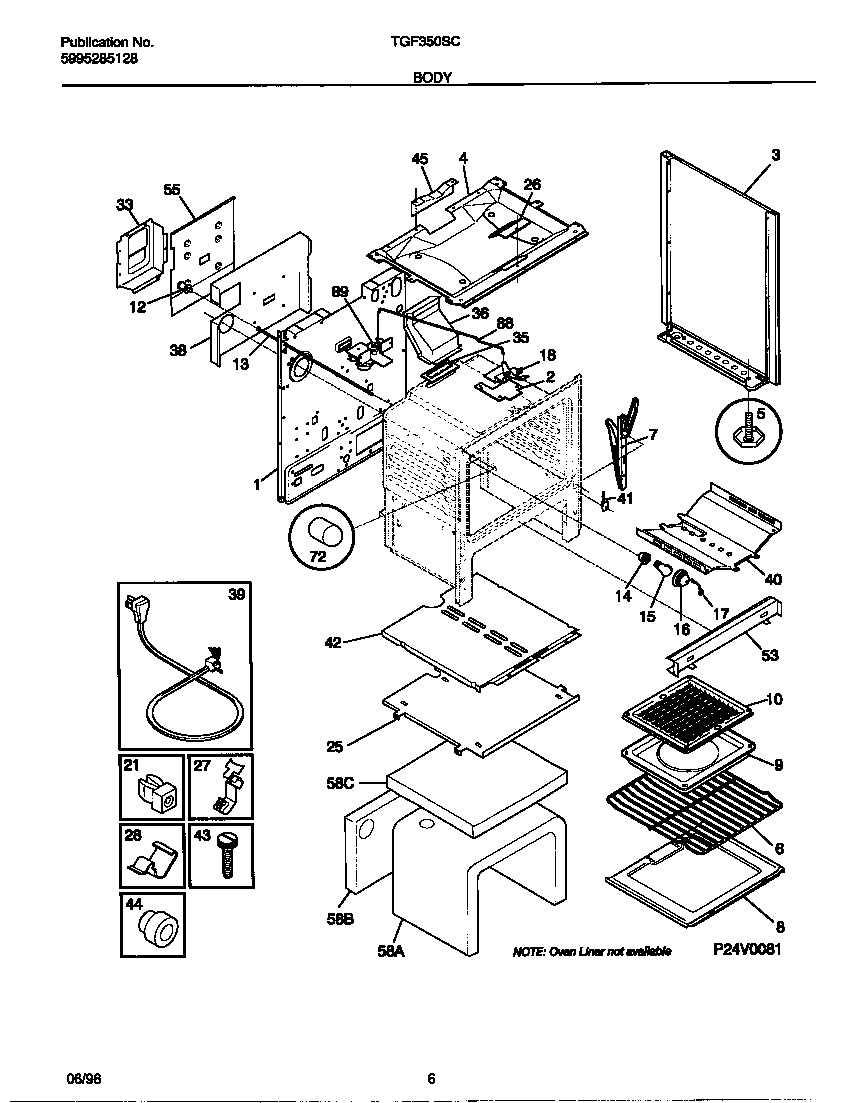

TGF350SCWC 04 – BODY

TGF350SCWC 04 – BODY

Written by

in

TGF350SCWC 04 – BODY

Products

PositionProduct
*82126Screw,cup pt ,8-18 x 0.375 ,chrome
*82127WCI 316056500
*82125ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
*82128WCI 316001630
1WCI 316029412
2SHIELD-OVN TOP
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 08067992
3BUMPER, COOKTOP (4)
3WCI 316081004
3WCI 316081005
4WCI 3011597
5SCREW-LEVELING
5WCI 3934058
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
73203010 Frigidaire Clip
8BTTM-OVEN
8316064600 Frigidaire Oven Support
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316051701
39WCI 08067961
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
40SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
53SHIELD-FRONT
5308067973 Frigidaire 0 Insulation
55WCI 316052601
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
58WCI 316054200
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028100
