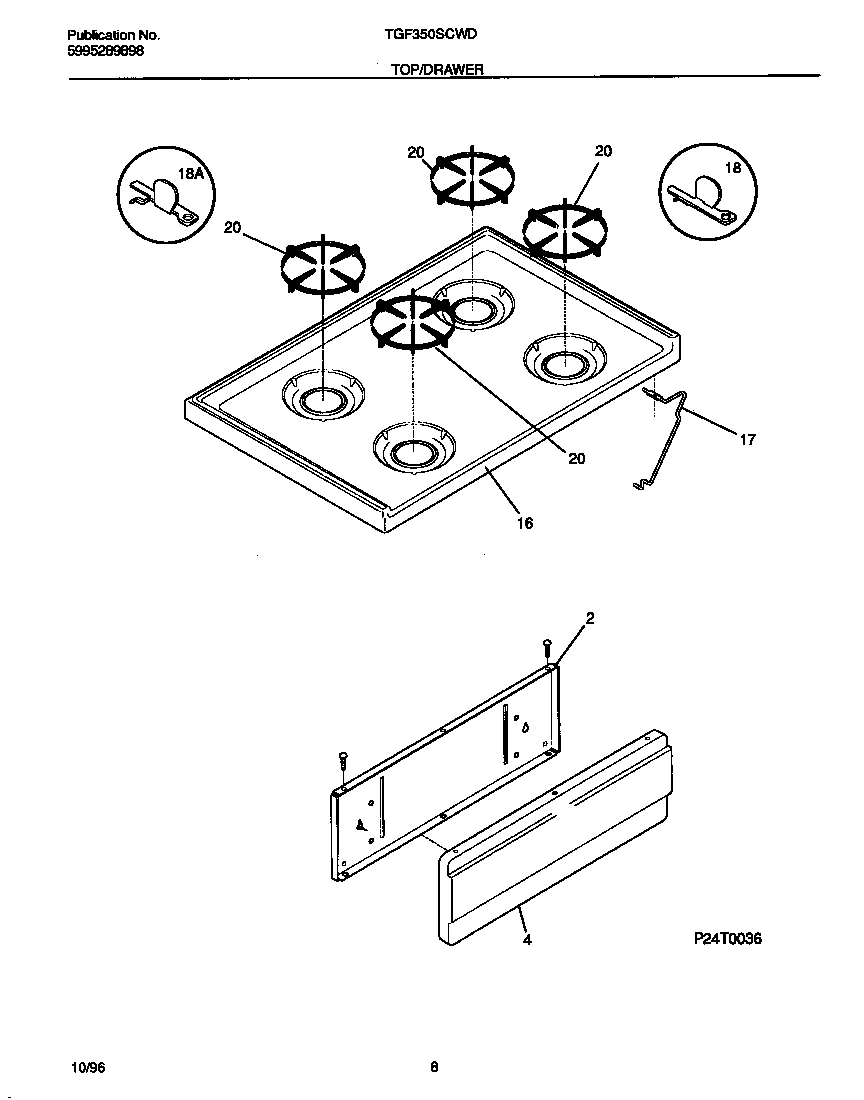

TGF350SCWD 05 – TOP/DRAWER

Products

Position	Product
*97093	WCI 5303280311
*97091	RIVET-POP, WARING-PLATE
*97092	Screw,cup pt ,8-18 x 0.375 ,chrome
*97089	ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
*97090	WCI 3018702
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PNL – DRAWER (WHITE)
16	WCI 3131351
17	WCI 316066900
18	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
20	WCI 316085201
