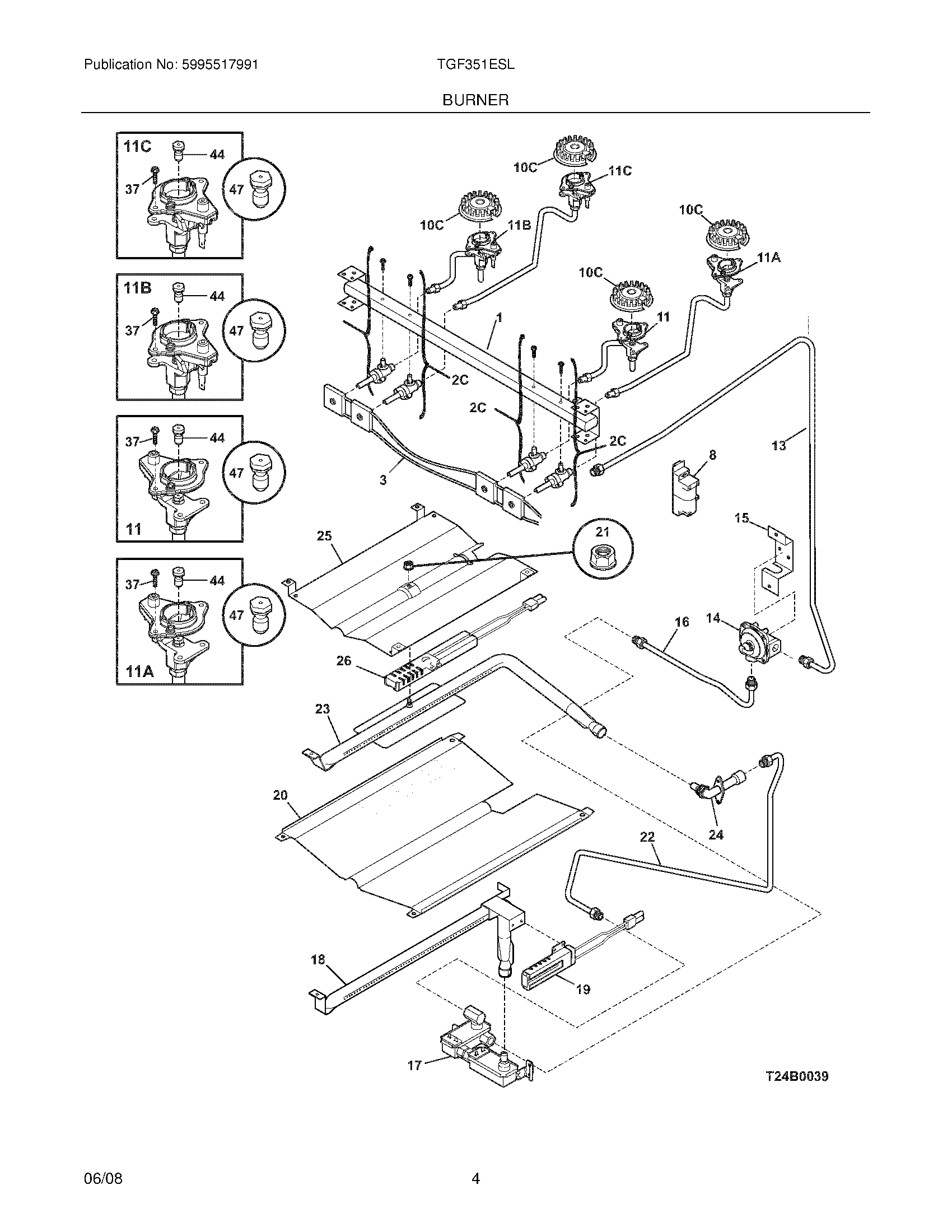

TGF351ESL 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316001017 Frigidaire Screw
NI	WIRING HARNESS,IGNITOR MODU
NI	316498100 Frigidaire Shield
NI	316215600 Frigidaire Oven Screw
NI	316401500 Frigidaire Oven Cover
1	316417900 Frigidaire Pipe Manifold
2C	316536000 Frigidaire Top Burner Valve
3	WCI 316219016
8	5304505695 Frigidaire Oven Module
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
11A	316536600 Frigidaire Igniter Assembly
11	316536602 Frigidaire Oven Igniter/Orifice Assembly
13	316489100 Frigidaire Oven Tube
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	316404901 Frigidaire Oven Valve
18	316404400 Frigidaire Oven Burner
19	5304534663 Frigidaire Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	WCI 316404300
24	5304516894 Frigidaire Oven Elbow
25	WCI 316401301
26	316489401 Frigidaire Igniter Assembly
37	316240600 Frigidaire Igniter Mounting Screw
44	316527500 Frigidaire Oven Burner Orifice
47	WCI 316542400
