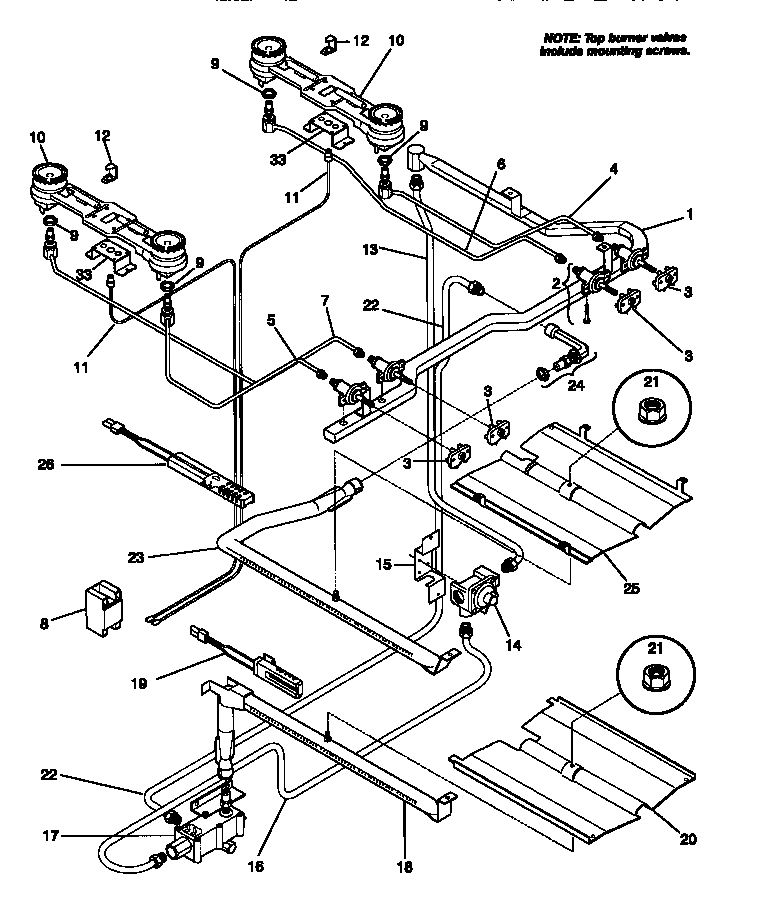

TGF353BCDA 03 – BURNER

Products

Position	Product
1	WCI 316066201
2A	VALVE, TOP, 2 POS, (4)
2B	316048200 Frigidaire Oven Screw
3B	SWITCH HARNESS TERMINAL KIT
3A	WCI 316032001
4	WCI 316051400
5	WCI 316051401
6	WCI 316051402
7	WCI 316051403
8	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9	NUT, SPECIAL
10	WCI 316057100
11A	IGNITER-TOP BURNER, BASE, (2)
11B	IGNITER-TOP BURNER, BASE, 33“
12	3016993 Frigidaire Oven Retainer
13	WCI 316065005
14B	316021104 Frigidaire Oven Screw Assembly
14A	5303935125 Frigidaire Pressure Regulator
15	316091600 Frigidaire Oven Bracket
16	WCI 316065003
17	5303208499 Frigidaire Safety Gas Valve
18	WCI 3131290
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	BAFFLE-OVN BURNER
21	5303013272 Frigidaire Oven Nut
22	WCI 316065002
23	WCI 08067935
24	WCI 316070400
25	WCI 5303210379
26	5303935068 Frigidaire Flat Igniter
33	BRACKET BURNER MTG
