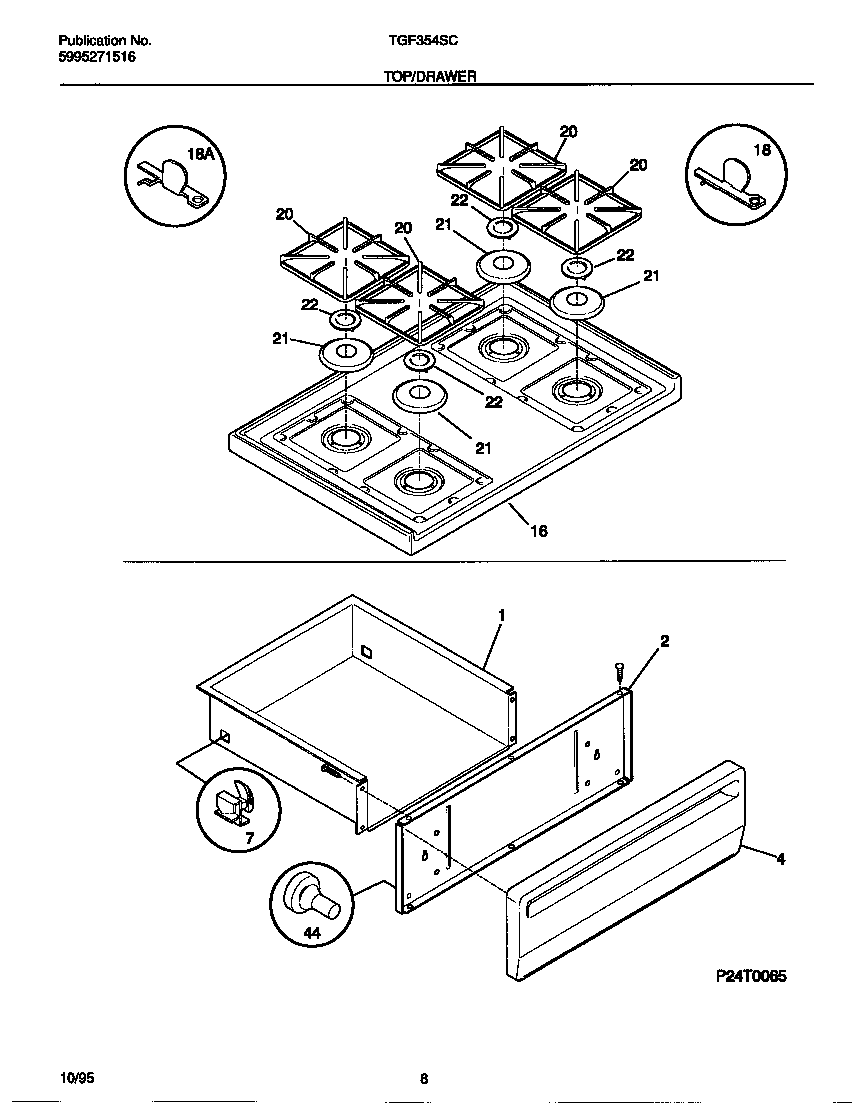

TGF354SCDA 05 – TOP/DRAWER

Products

Position	Product
*84408	RIVET-POP, WARING-PLATE
*84409	WCI 5303281584
*84410	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316084406
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	WCI 316010409
18	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
20	WCI 316085201
21	TRIM RING-BURNER, BLACK, SMALL, (4)
22	316010901 Frigidaire Burner Cap P1
44	3131903 Frigidaire Door/Drawer Bumper
