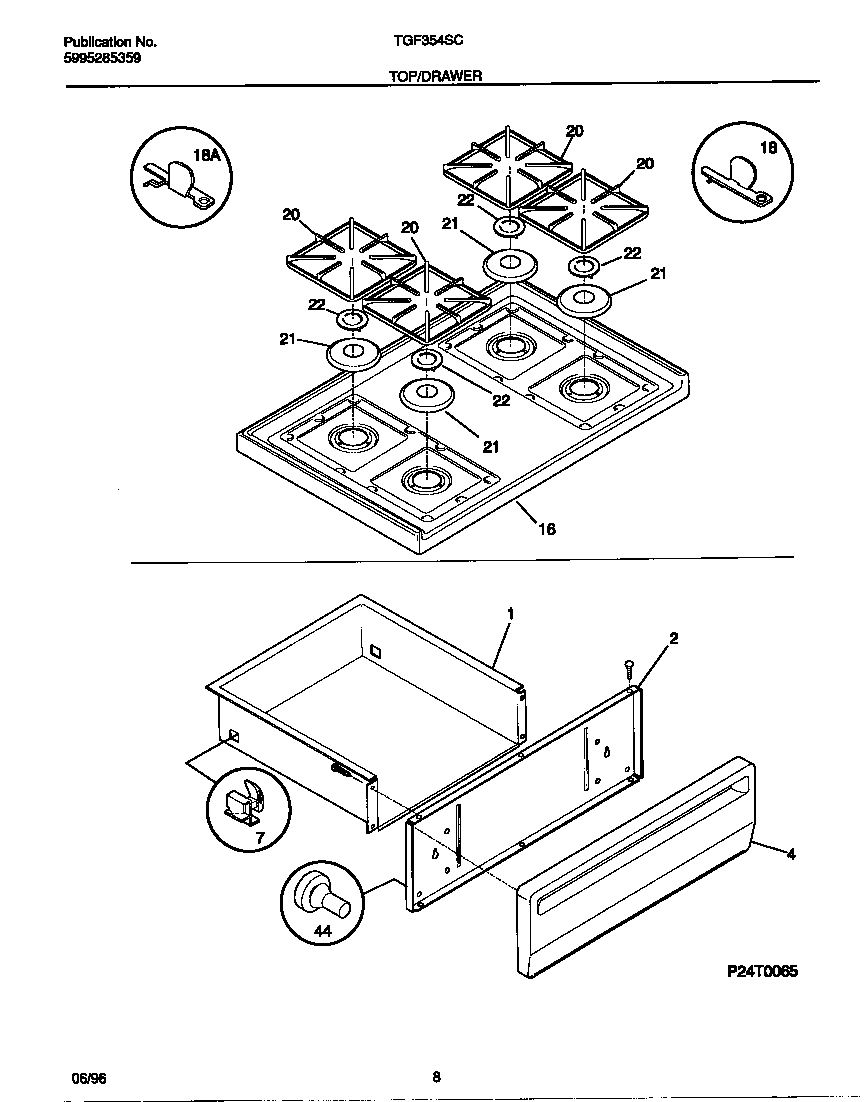

TGF354SCDC 05 – TOP/DRAWER

Products

Position	Product
*90290	RIVET-POP, WARING-PLATE
*90292	WCI 5303280311
*90293	WCI 5303281584
*90294	131243700 Frigidaire Screw
*90291	Screw,cup pt ,8-18 x 0.375 ,chrome
1	DRAWER-UTILITY
2	SHIELD-PNL
4	316021109 Frigidaire Oven Screw
4	WCI 316084406
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	WCI 316010409
18	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
20	WCI 316085201
21	TRIM RING-BURNER, BLACK, SMALL, (4)
22	316010901 Frigidaire Burner Cap P1
44	3131903 Frigidaire Door/Drawer Bumper
